Item group

2/2-way solenoid valves from stainless steel, force controlled

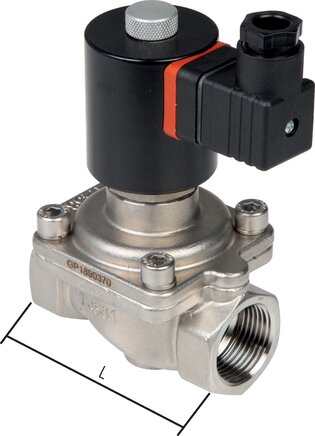

Exemplary representation: 2/2-directional stainless steel solenoid valve (positively operated) Schematic symbol: 2/2-way solenoid valve, closed when de-energised (NC) Schematic symbol: 2/2-way solenoid valve, open when de-energised (NO)

Materials:

Bodies: 1.4581 (internal parts 1.4104), seal: FKM

Temperature range:

-10°C to +80°C, environment: max. +35°C

Media:

Compressed air, neutral gases, water, neutral low-viscosity media, other media on request

Operating pressure:

0 to 16 bar

Installation position:

With upright magnets, opened without power (NO), also with horizontal magnets

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Protection class:

IP 65

Information:

These valves are always supplied with a solenoid coil and a connector plug.
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 715) atlas9_seiten/715.pdf
