Item group

3/2-way solenoid valves from stainless steel

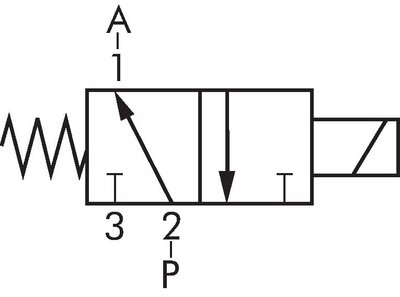

Exemplary representation: 3/2-directional stainless steel solenoid valve Schematic symbol: 3/2-way solenoid valve, closed when de-energised (NC) Schematic symbol: 3/2-way solenoid valve, open when de-energised (NO)

Materials:

Body: 1.4104, seal: FKM

Temperature range:

-10 to +130 °C, environment: max. +50 °C

Installation position:

With upright magnets

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Protection class:

IP 65 (plug size 3)

Warning:

Pressure connection contrary to the standard at connection 2, venting via connection 3

Information:

These valves are always supplied with a solenoid coil and a connector plug.
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 716) atlas9_seiten/716.pdf

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way solenoid valves from stainless steel:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
M 318 ES 24V=
3/2-way ES-solenoid valve G 1/8" closed (NC) without power
188,60€ incl. VAT
M 318 ES 230V
3/2-way ES-solenoid valve G 1/8" closed (NC) without power
188,60€ incl. VAT
M 318 ES 12V=
3/2-way ES-solenoid valve G 1/8" closed (NC) without power
188,60€ incl. VAT
M 318 ES 48V=
3/2-way ES-solenoid valve G 1/8" closed (NC) without power
188,60€ incl. VAT
M 318 ES 24VAC
3/2-way ES-solenoid valve G 1/8" closed (NC) without power
188,60€ incl. VAT
M 318 ES 115V
3/2-way ES-solenoid valve G 1/8" closed (NC) without power
188,60€ incl. VAT
M 318 ES 48VAC
3/2-way ES-solenoid valve G 1/8" closed (NC) without power
188,60€ incl. VAT
M 314 ES 24V=
3/2-way ES-solenoid valve G 1/4" closed (NC) without power
188,60€ incl. VAT
M 314 ES 230V
3/2-way ES-solenoid valve G 1/4" closed (NC) without power
188,60€ incl. VAT
M 314 ES 12V=
3/2-way ES-solenoid valve G 1/4" closed (NC) without power
188,60€ incl. VAT
M 314 ES 48V=
3/2-way ES-solenoid valve G 1/4" closed (NC) without power
188,60€ incl. VAT
M 314 ES 24VAC
3/2-way ES-solenoid valve G 1/4" closed (NC) without power
188,60€ incl. VAT
M 314 ES 115V
3/2-way ES-solenoid valve G 1/4" closed (NC) without power
188,60€ incl. VAT
M 314 ES 48VAC
3/2-way ES-solenoid valve G 1/4" closed (NC) without power
188,60€ incl. VAT
MO 318 ES 24V=
3/2-way ES-solenoid valve G 1/8" open (NO) without power
248,31€ incl. VAT
MO 318 ES 230V
3/2-way ES-solenoid valve G 1/8" open (NO) without power
248,31€ incl. VAT
MO 318 ES 12V=
3/2-way ES-solenoid valve G 1/8" open (NO) without power
248,31€ incl. VAT
MO 318 ES 24VAC
3/2-way ES-solenoid valve G 1/8" open (NO) without power
248,31€ incl. VAT
MO 318 ES 115V
3/2-way ES-solenoid valve G 1/8" open (NO) without power
248,31€ incl. VAT
MO 314 ES 24V=
3/2-way ES-solenoid valve G 1/4" open (NO) without power
248,31€ incl. VAT
