Item group

5/3-way hand lever valves, Series HF / HR

Name: 5/3-way hand lever valve, Centre position closed, spring return, G 1/8" of Airtec (WEEE DE94696834 )
Brand: Airtec (WEEE DE94696834 )
SKU: HF 18 530 *
Price: 102.29 EUR
Availability: InStock

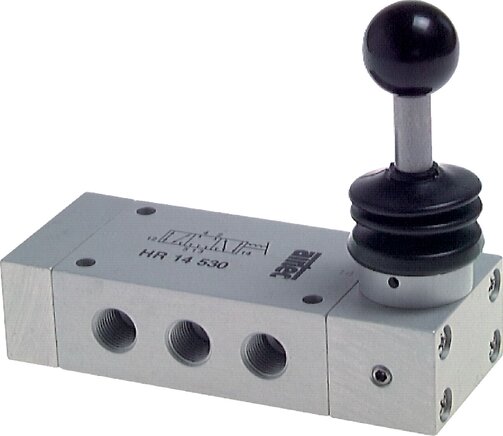

Exemplary representation: 5/3-way hand lever valve

YouTube videos:

Directional valves - Overview, function and explanation of 5/3-way valves

Materials:

Body and slider: Aluminium, internal parts: Aluminium, stainless steel, hand lever: Stainless steel, seals: POM / NBR

Temperature range:

-10 to +70 °C

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection

*available for vacuum applications on request

Documents:

More information

5/3-way hand lever valves, Series HF / HR:

12 of 12 articles

HF 18 530 *

5/3-way hand lever valve, Centre position closed, spring return, G 1/8"

€102.29 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position closed, spring return	G 1/8"	G 1/8"	6

HF 14 530

5/3-way hand lever valve, Centre position closed, spring return, G 1/4"

€129.51 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position closed, spring return	G 1/4"	G 1/4"	9

HF 12 530

5/3-way hand lever valve, Centre position closed, spring return, G 1/2"

€408.31 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position closed, spring return	G 1/2"	G 1/2"	14

HR 18 530 *

5/3-way hand lever valve, Centre position closed, detend, G 1/8"

€100.28 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position closed, detend	G 1/8"	G 1/8"	6

HR 14 530

5/3-way hand lever valve, Centre position closed, detend, G 1/4"

€130.71 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position closed, detend	G 1/4"	G 1/4"	9

HR 12 530

5/3-way hand lever valve, Centre position closed, detend, G 1/2"

€404.18 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position closed, detend	G 1/2"	G 1/2"	14

HF 18 533 *

5/3-way hand lever valve, Centre position vented, spring return, G 1/8"

€102.29 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position vented, spring return	G 1/8"	G 1/8"	6

HF 14 533

5/3-way hand lever valve, Centre position vented, spring return, G 1/4"

€129.51 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position vented, spring return	G 1/4"	G 1/4"	9

HF 12 533

5/3-way hand lever valve, Centre position vented, spring return, G 1/2"

€408.31 incl. VAT

Quantity

pcs

deliverable again in ⌀ 4 weeks

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position vented, spring return	G 1/2"	G 1/2"	14

HR 18 533 *

5/3-way hand lever valve, Centre position vented, detend, G 1/8"

€100.28 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position vented, detend	G 1/8"	G 1/8"	6

HR 14 533

5/3-way hand lever valve, Centre position vented, detend, G 1/4"

€130.71 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position vented, detend	G 1/4"	G 1/4"	9

HR 12 533

5/3-way hand lever valve, Centre position vented, detend, G 1/2"

€404.18 incl. VAT

Quantity

pcs

Immediately available

function	Thread (3x)	Thread exhaust air (2x)	Nominal width [mm]
Centre position vented, detend	G 1/2"	G 1/2"	14

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
