Item group

Consoles for hose clips

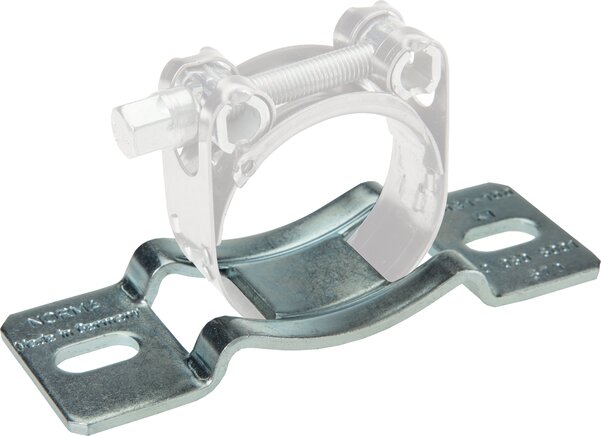

Name: Consoles for hose clips to 20mm, tube 40 to 62mm
Brand: Landefeld
SKU: SSBK 62
Price: 14.55 EUR
Availability: InStock

Principskitse: Konsol til slangeklemme

Materials:

Zinc plated steel

Suitable:

This console and a hose clip add stability to the foot for round containers and a stable mounting of tubes.

Clamps that can be used:

SS ..., SSB ..., SSBP ..., SSSI ..., SSKB ...

Warning: Order accessories at the same time!

1 piece hose clip

Documents:

Catalogue page Atlas 9 (Page 419) (PDF)

More information

Consoles for hose clips:

13 of 13 articles

SSBK 62

Consoles for hose clips to 20mm, tube 40 to 62mm

€14.55 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
40 - 62	20	120 x 40	9 x 8

SSBK 80

Consoles for hose clips to 20mm, tube 63 to 80mm

€14.86 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
63 - 80	20	120 x 40	9 x 8

SSBK 100

Consoles for hose clips to 20mm, tube 81 to 100mm

€15.29 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
81 - 100	20	120 x 40	9 x 8

SSBK 118

Consoles for hose clips to 25mm, tube 101 to 118mm

€24.76 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
101 - 118	25	156 x 50	9 x 18

SSBK 136

Consoles for hose clips to 25mm, tube 119 to 136mm

€25.12 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
119 - 136	25	156 x 50	9 x 18

SSBK 163

Consoles for hose clips to 25mm, tube 137 to 163mm

€25.36 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
137 - 163	25	156 x 50	9 x 18

SSBK 180

Consoles for hose clips to 25mm, tube 163 to 180mm

€35.91 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
163 - 180	25	236 x 60	9 x 32

SSBK 207

Consoles for hose clips to 25mm, tube 181 to 207mm

€36.97 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
181 - 207	25	236 x 60	9 x 32

SSBK 234

Consoles for hose clips to 25mm, tube 208 to 234mm

€38.09 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
208 - 234	25	236 x 60	9 x 32

SSBK 259

Consoles for hose clips to 30mm, tube 235 to 259mm

€80.98 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
235 - 259	30	300 x 60	11 x 32

SSBK 298

Consoles for hose clips to 30mm, tube 261 to 298mm

€75.07 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
261 - 298	30	300 x 60	11 x 32

SSBK 337

Consoles for hose clips to 30mm, tube 300 to 337mm

€75.07 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
300 - 337	30	300 x 60	11 x 32

SSBK 389

Consoles for hose clips to 30mm, tube 339 to 389mm

€90.30 incl. VAT

Quantity

pcs

Immediately available

for pipe diameter (outer) [mm]	Max. clamp width [mm]	Length x width [mm]	Mounting long hole width x length [mm]
339 - 389	30	400 x 60	11 x 32

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
