Item group

Coupling plugs with union nut and bulkhead thread, NW 2,7

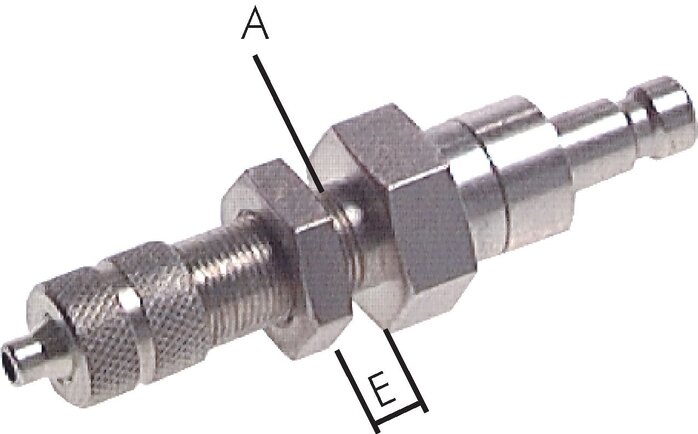

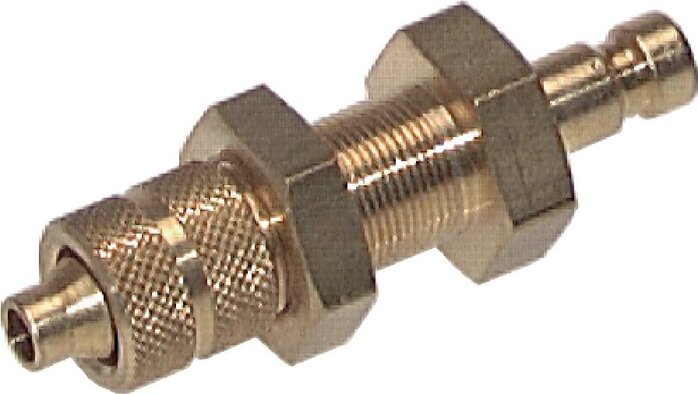

Exemplary representation: Coupling plug with union nut & bulkhead thread, brass Exemplary representation: Coupling plug with union nut & bulkhead thread, nickel-plated brass Exemplary representation: Special version BA detailed view: Plug dimensions

Materials:

Body: brass, nickel-plated brass or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:

-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)

Operating pressure:

-0,95 to 35 bar

Flow*:

165 l/min (Option -BA: 150 l/min)

Note:

Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:

Rectus (20, 91), Walther (06-003), Festo (KD2/KS2), IMI-Norgren (232), Aventics (CP1-NW 2,7)

Optional:

with valve for double-sided shut-off -BA
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 279) atlas9_seiten/279.pdf

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Coupling plugs with union nut and bulkhead thread, NW 2,7:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
56,94€ incl. VAT
47,72€ incl. VAT
