Item group

Coupling sockets of POM / PVDF with hose screw connection, NW 5

Name: Coupling socket (NW5) 4mm hose, POM of Parker
Brand: Parker
SKU: KDS 4 NW5 PO
Price: 34.66 EUR
Availability: InStock

Exemplary representation: Coupling socket with hose connection, POM

Exemplary representation: Coupling socket with hose connection, PVDF

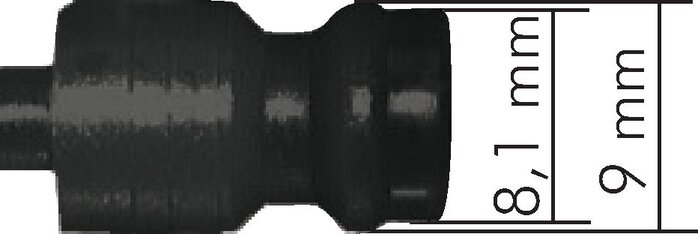

Exemplary representation: Plug dimensions

Type POM:

Materials:

Body: POM black, springs and valve: Stainless steel 1.4310, seals: NBR

Temperature range:

-20°C to max. +80°C

Operating pressure:

0 - 10 bar

Flow of air (water)**

550 l/min (7 l/min), in conjunction with blocking coupling plug -BA: 310 l/min (2.7 l/min)

Type PVDF:

Materials:

Body: PVDF natural, springs and valve: stainless steel 1.4571, seals: FKM

Temperature range:

-20°C to max. +120°C

Operating pressure:

0 - 8 bar

Flow of air (water)**

550 l/min (7 l/min), in conjunction with blocking coupling plug -BA: 310 l/min (2.7 l/min)

Note:

Coupling sockets and coupling plugs (open or locking) can be combined as required.

Compatible with*:

Rectus (21, 90), Camozzi, EWO, KANI

*Some names and designations are registered trademarks of the respective manufacturers, **6 bar inlet pressure, 0.5 bar pressure difference

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 320) atlas9_seiten/320.pdf

Coupling sockets of POM / PVDF with hose screw connection, NW 5:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

KDS 4 NW5 PO

Coupling socket (NW5) 4mm hose, POM

34,66€ incl. VAT

Material	Hose diameter (inner) [mm]	Temperature range [°C]	Operating pressure [bar]
POM	4	-20 to +80	0 - 10

KDS 4 NW5 PV

Coupling socket (NW5) 4mm hose, PVDF

64,39€ incl. VAT

Material	Hose diameter (inner) [mm]	Temperature range [°C]	Operating pressure [bar]
PVDF	4	-20 to +120	0 - 8

KDS 6 NW5 PV

Coupling socket (NW5) 6 (1/4")mm hose, PVDF

73,27€ incl. VAT

Material	Hose diameter (inner) [mm]	Temperature range [°C]	Operating pressure [bar]
PVDF	6 (1/4")	-20 to +120	0 - 8
