Item group

Coupling sockets of POM / PVDF with hose screw connection, NW 7.2

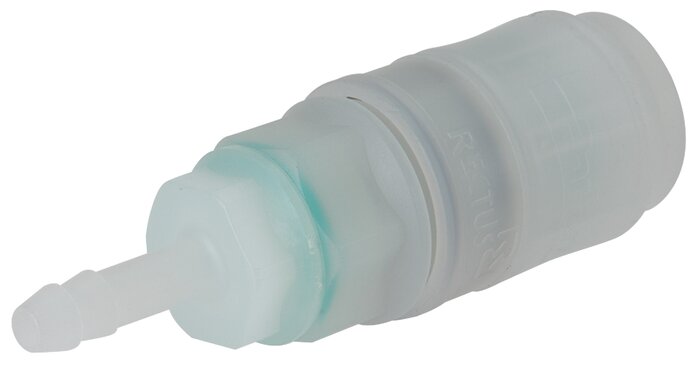

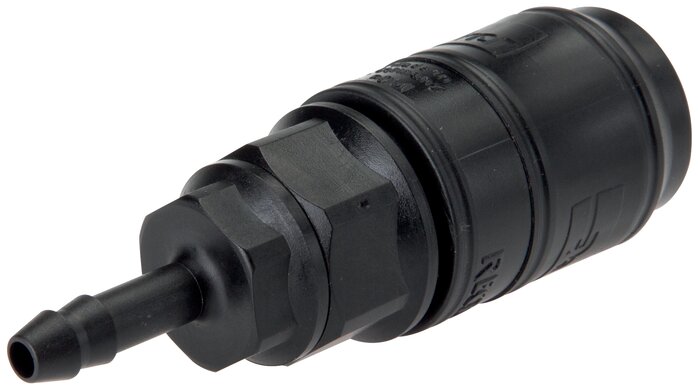

Exemplary representation: Coupling socket with grommet, POM Exemplary representation: Coupling socket with grommet, PVDF Exemplary representation: Plug dimension Schematic symbol

Type POM:

Materials:

Body: POM black, springs and valve: Stainless steel 1.4310, seals: NBR

Temperature range:

-20°C to max. +80°C

Operating pressure:

0 - 10 bar

Flow of air (water)**

1100 l/min (17 l/min), in conjunction with blocking coupling plug -BA: 770 l/min (12 l/min)

Type PVDF:

Materials:

Body: PVDF natural, springs and valve: stainless steel 1.4571, seals: FKM

Temperature range:

-20°C to max. +120°C

Operating pressure:

0 - 8 bar

Flow of air (water)**

1100 l/min (17 l/min), in conjunction with blocking coupling plug -BA: 770 l/min (12 l/min)

Note:

Coupling sockets and coupling plugs (open or blocking action) can be combined at will. Cannot be combined with workshop couplings NW 7.2!

Compatible with*:

Rectus (48)
*Some names and designations are registered trademarks of the respective manufacturers, **6 bar inlet pressure, 0.5 bar pressure difference

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 321) atlas9_seiten/321.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Coupling sockets of POM / PVDF with hose screw connection, NW 7.2:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
37,66€ incl. VAT
37,66€ incl. VAT
41,17€ incl. VAT
92,92€ incl. VAT
87,63€ incl. VAT
99,83€ incl. VAT
{{ $t('shop.all.unverbindliche_richtwerte') }}
