Item group

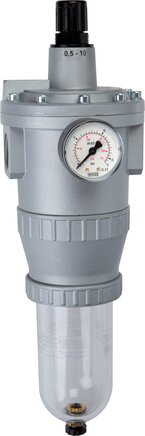

Filter regulators - standard, up to 12000 l/min

Version:

Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter

Materials:

Body: die-cast zinc Z410 (model series 5: aluminium), diaphragms and seals: NBR, condensate container: polycarbonate (Model series Mini: spring hood: POM)

Temperature range:

-10 to +60 °C

Input pressure:

1.5 - 16 bar (with metal bowl 1.5 - 25 bar)

Condensate draining:

semi-automatic**

Media:

Compressed air, neutral gases

ATEX:

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Advantages:

•Automatic venting in the event of overpressure on the secondary side

Pressure gauge connection:

G 1/4"

Switch panel thread:

Series 1 to 3: M 20x1.5

Scope of delivery:

Pressure regulator including 50 mm pressure gauge

Optional:

Other pressure regulation ranges: 0.1 - 3 bar -3, 0.2 - 6 bar -6, 0.5 - 16 bar -16, Version with protective cage -S, Version with metal bowl (1.5 - 25 bar), -M, automatic discharge* -AM, automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC
*Not for model series 1, max. 16 bar when combined with a metal bowl, **as soon as the inlet pressure falls below the minimum input pressure, the drain valve opens automatically. The semi-automatic drain valve can be prevented from opening by screwing on the drain plug tightly.

Documents:

More information Less information
Filter regulators - standard, up to 12000 l/min:
20 of 111 articles
STANDARD filter regulator G 1/4", 0,5 to 10 bar, Standard 1(FD 11)
FD 11
STANDARD filter regulator G 1/4", 0,5 to 10 bar, Standard 1
€80.10 incl. VAT
Immediately available
STANDARD filter regulator G 1/4", 0,1 to 3 bar, Standard 1(FD 11-3)
FD 11-3
STANDARD filter regulator G 1/4", 0,1 to 3 bar, Standard 1
€81.97 incl. VAT
Immediately available
STANDARD filter regulator G 1/4", 0,2 to 6 bar, Standard 1(FD 11-6)
FD 11-6
STANDARD filter regulator G 1/4", 0,2 to 6 bar, Standard 1
€81.97 incl. VAT
Immediately available
STANDARD filter regulator G 1/4", 0,5 to 16 bar, Standard 1(FD 11-16)
FD 11-16
STANDARD filter regulator G 1/4", 0,5 to 16 bar, Standard 1
€81.97 incl. VAT
Immediately available
STANDARD filter regulator G 3/8", 0,5 to 10 bar, Standard 1(FD 12)
FD 12
STANDARD filter regulator G 3/8", 0,5 to 10 bar, Standard 1
€80.10 incl. VAT
Immediately available
STANDARD filter regulator G 3/8", 0,1 to 3 bar, Standard 1(FD 12-3)
FD 12-3
STANDARD filter regulator G 3/8", 0,1 to 3 bar, Standard 1
€81.97 incl. VAT
Immediately available
STANDARD filter regulator G 3/8", 0,2 to 6 bar, Standard 1(FD 12-6)
FD 12-6
STANDARD filter regulator G 3/8", 0,2 to 6 bar, Standard 1
€81.97 incl. VAT
Immediately available
STANDARD filter regulator G 3/8", 0,5 to 16 bar, Standard 1(FD 12-16)
FD 12-16
STANDARD filter regulator G 3/8", 0,5 to 16 bar, Standard 1
€81.97 incl. VAT
Immediately available
STANDARD filter regulator G 1/4", 0,5 to 10 bar, Standard 1(FD 11 S)
FD 11 S
STANDARD filter regulator G 1/4", 0,5 to 10 bar, Standard 1
€103.40 incl. VAT
Immediately available
STANDARD filter regulator G 1/4", 0,1 to 3 bar, Standard 1(FD 11-3 S)
FD 11-3 S
STANDARD filter regulator G 1/4", 0,1 to 3 bar, Standard 1
€103.40 incl. VAT
Immediately available
STANDARD filter regulator G 1/4", 0,2 to 6 bar, Standard 1(FD 11-6 S)
FD 11-6 S
STANDARD filter regulator G 1/4", 0,2 to 6 bar, Standard 1
€103.40 incl. VAT
Not in stock
STANDARD filter regulator G 1/4", 0,5 to 16 bar, Standard 1(FD 11-16 S)
FD 11-16 S
STANDARD filter regulator G 1/4", 0,5 to 16 bar, Standard 1
€103.40 incl. VAT
Not in stock
STANDARD filter regulator G 3/8", 0,5 to 10 bar, Standard 1(FD 12 S)
FD 12 S
STANDARD filter regulator G 3/8", 0,5 to 10 bar, Standard 1
€103.40 incl. VAT
Immediately available
STANDARD filter regulator G 3/8", 0,1 to 3 bar, Standard 1(FD 12-3 S)
FD 12-3 S
STANDARD filter regulator G 3/8", 0,1 to 3 bar, Standard 1
€103.40 incl. VAT
Immediately available
STANDARD filter regulator G 3/8", 0,2 to 6 bar, Standard 1(FD 12-6 S)
FD 12-6 S
STANDARD filter regulator G 3/8", 0,2 to 6 bar, Standard 1
€103.40 incl. VAT
Immediately available
STANDARD filter regulator G 3/8", 0,5 to 16 bar, Standard 1(FD 12-16 S)
FD 12-16 S
STANDARD filter regulator G 3/8", 0,5 to 16 bar, Standard 1
€103.40 incl. VAT
Immediately available
STANDARD filter regulator G 1/4", 0,5 to 10 bar, Standard 1(FD 11 M)
FD 11 M
STANDARD filter regulator G 1/4", 0,5 to 10 bar, Standard 1
€87.37 incl. VAT
Immediately available
STANDARD filter regulator G 1/4", 0,2 to 6 bar, Standard 1(FD 11-6 M)
FD 11-6 M
STANDARD filter regulator G 1/4", 0,2 to 6 bar, Standard 1
€87.37 incl. VAT
Immediately available
STANDARD filter regulator G 1/4", 0,5 to 16 bar, Standard 1(FD 11-16 M)
FD 11-16 M
STANDARD filter regulator G 1/4", 0,5 to 16 bar, Standard 1
€87.37 incl. VAT
Immediately available
STANDARD filter regulator G 3/8", 0,5 to 10 bar, Standard 1(FD 12 M)
FD 12 M
STANDARD filter regulator G 3/8", 0,5 to 10 bar, Standard 1
€87.37 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
