Item group

Hammerhead threaded plates for mounting rails & cantilever brackets, HG

Application:

Hammerhead threaded plates for easy fastening of threaded pins or rods in mounting rails. Mounting is done by inserting the hammerhead threaded plate into the rail or bracket. After alignment, the threaded plate should be secured with a nut. Fits all standard mounting rails with 15, 16 and 17 mm slot width.

Documents:

More information Less information
Hammerhead threaded plates for mounting rails & cantilever brackets, HG:
5 of 5 articles

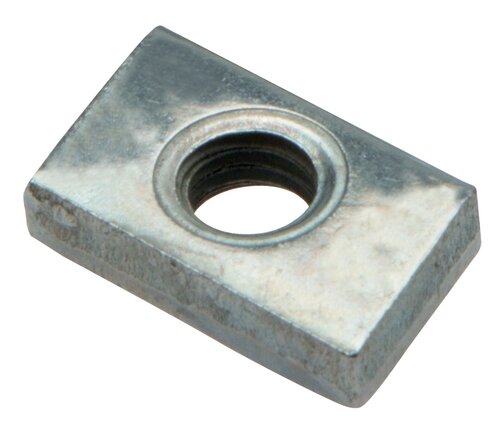

Hammer head thread plate HG, M 8, Zinc plated steel (22 x 14 x 5)(FI HG 27 M8)
FI HG 27 M8
Hammer head thread plate HG, M 8, Zinc plated steel (22 x 14 x 5)
€0.73 incl. VAT
Immediately available

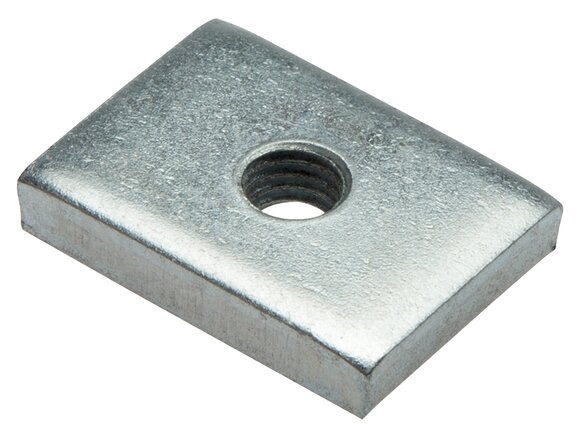

Hammer head thread plate HG, M 8, Zinc plated steel (33 x 23 x 6)(FI HG 38 M8)
FI HG 38 M8
Hammer head thread plate HG, M 8, Zinc plated steel (33 x 23 x 6)
€1.45 incl. VAT
Immediately available
Hammer head thread plate HG, M 10, Zinc plated steel (33 x 23 x 6)(FI HG 38 M10)
FI HG 38 M10
Hammer head thread plate HG, M 10, Zinc plated steel (33 x 23 x 6)
€1.48 incl. VAT
Immediately available
Hammer head thread plate HG, M 8, Stainless steel A4 (22 x 14 x 5)(FI HG 27 M8 ES)
FI HG 27 M8 ES
Hammer head thread plate HG, M 8, Stainless steel A4 (22 x 14 x 5)
€2.99 incl. VAT
Immediately available
Hammer head thread plate HG, M 8, Stainless steel A4 (33 x 23 x 6)(FI HG 38 M8 ES)
FI HG 38 M8 ES
Hammer head thread plate HG, M 8, Stainless steel A4 (33 x 23 x 6)
€4.09 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
