Item group

Hard metal burrs, DIN 8033

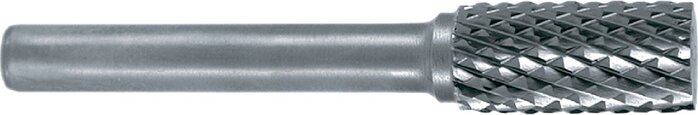

Name: Hard metal burr 3mm, ZYA - shape A - cylinder without spur teething ring
Brand: Landefeld
SKU: FS ZYA 3X14
Price: 14.32 EUR
Availability: InStock

Exemplary representation: Carbide burr (ZYA)

Description:

High-quality carbide burrs with cross serration (KVZ 4) for deburring, contour machining, weld seam machining, surface finishing, fettling of high-alloy, rust-, acid- and heat-resistant steels, cast iron and plastics. Recommended cutting speed 300 m/min

Recommended cutting speed (V):

Steel, stainless steel & hard non-ferrous metals: 250 - 350 m/min, soft non-ferrous metals & cast iron: 600 - 900 m/min, plastics: 500 - 1100 m/min (rule of thumb: revolutions = V x 318 / head diameter)

Documents:

Catalogue page Atlas 9 (Page 990) (PDF)

More information

Hard metal burrs, DIN 8033:

20 of 42 articles

FS ZYA 3X14

Hard metal burr 3mm, ZYA - shape A - cylinder without spur teething ring

€14.32 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
3	14	27000 - 37000	64000 - 95000

Version

ZYA - shape A - cylinder without spur teething ring

FS ZYA 6X18

Hard metal burr 6mm, ZYA - shape A - cylinder without spur teething ring

€22.10 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
6	18	13000 - 19000	32000 - 48000

Version

ZYA - shape A - cylinder without spur teething ring

FS ZYA 8X18

Hard metal burr 8mm, ZYA - shape A - cylinder without spur teething ring

€27.91 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
8	18	10000 - 14000	24000 - 36000

Version

ZYA - shape A - cylinder without spur teething ring

FS ZYA 10X20

Hard metal burr 10mm, ZYA - shape A - cylinder without spur teething ring

€30.51 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
10	20	8000 - 11000	19000 - 29000

Version

ZYA - shape A - cylinder without spur teething ring

FS ZYA 12X25

Hard metal burr 12mm, ZYA - shape A - cylinder without spur teething ring

€41.89 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
12	25	7000 - 9000	16000 - 24000

Version

ZYA - shape A - cylinder without spur teething ring

FS ZYA 16X25

Hard metal burr 16mm, ZYA - shape A - cylinder without spur teething ring

€48.97 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
16	25	5000 - 7000	12000 - 18000

Version

ZYA - shape A - cylinder without spur teething ring

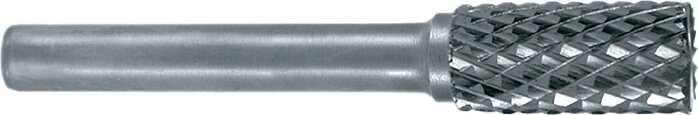

FS ZYAS 3X14

Hard metal burr 3mm, ZYAS - shape A - cylinder with spur teething ring

€14.64 incl. VAT

Quantity

pcs

Immediately available

Version	Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]
ZYAS - shape A - cylinder with spur teething ring	3	14	27000 - 37000

FS ZYAS 6X18

Hard metal burr 6mm, ZYAS - shape A - cylinder with spur teething ring

€24.15 incl. VAT

Quantity

pcs

Immediately available

Version	Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]
ZYAS - shape A - cylinder with spur teething ring	6	18	13000 - 19000

FS ZYAS 8X18

Hard metal burr 8mm, ZYAS - shape A - cylinder with spur teething ring

€26.23 incl. VAT

Quantity

pcs

Immediately available

Version	Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]
ZYAS - shape A - cylinder with spur teething ring	8	18	10000 - 14000

FS ZYAS 10X20

Hard metal burr 10mm, ZYAS - shape A - cylinder with spur teething ring

€34.75 incl. VAT

Quantity

pcs

Immediately available

Version	Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]
ZYAS - shape A - cylinder with spur teething ring	10	20	8000 - 11000

FS ZYAS 12X25

Hard metal burr 12mm, ZYAS - shape A - cylinder with spur teething ring

€42.60 incl. VAT

Quantity

pcs

Immediately available

Version	Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]
ZYAS - shape A - cylinder with spur teething ring	12	25	7000 - 9000

FS ZYAS 16X25

Hard metal burr 16mm, ZYAS - shape A - cylinder with spur teething ring

€53.93 incl. VAT

Quantity

pcs

Immediately available

Version	Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]
ZYAS - shape A - cylinder with spur teething ring	16	25	5000 - 7000

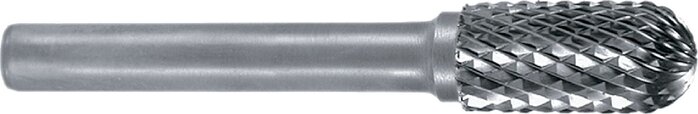

FS WRC 3X14

Hard metal burr 3mm, WRC - shape C - cylindrical round nose / ball cylinder

€14.64 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
3	14	27000 - 37000	64000 - 95000

Version

WRC - shape C - cylindrical round nose / ball cylinder

FS WRC 6X18

Hard metal burr 6mm, WRC - shape C - cylindrical round nose / ball cylinder

€25.11 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
6	18	13000 - 19000	32000 - 48000

Version

WRC - shape C - cylindrical round nose / ball cylinder

FS WRC 8X18

Hard metal burr 8mm, WRC - shape C - cylindrical round nose / ball cylinder

€26.23 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
8	18	10000 - 14000	24000 - 36000

Version

WRC - shape C - cylindrical round nose / ball cylinder

FS WRC 10X20

Hard metal burr 10mm, WRC - shape C - cylindrical round nose / ball cylinder

€30.27 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
10	20	8000 - 11000	19000 - 29000

Version

WRC - shape C - cylindrical round nose / ball cylinder

FS WRC 12X25

Hard metal burr 12mm, WRC - shape C - cylindrical round nose / ball cylinder

€43.96 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
12	25	7000 - 9000	16000 - 24000

Version

WRC - shape C - cylindrical round nose / ball cylinder

FS WRC 16X25

Hard metal burr 16mm, WRC - shape C - cylindrical round nose / ball cylinder

€49.08 incl. VAT

Quantity

pcs

Immediately available

Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]	recommended revolutions (soft non-ferrous metals & cast iron) [1/min]
16	25	5000 - 7000	12000 - 18000

Version

WRC - shape C - cylindrical round nose / ball cylinder

FS KUD 3X2,7

Hard metal burr 3mm, KUD - shape D - ball

€14.32 incl. VAT

Quantity

pcs

Immediately available

Version	Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]
KUD - shape D - ball	3	2,7	27000 - 37000

FS KUD 6X5

Hard metal burr 6mm, KUD - shape D - ball

€24.04 incl. VAT

Quantity

pcs

Immediately available

Version	Head diameter [mm]	Head length [mm]	recommended revolutions (steel, stainless steel & hard non-ferrous metals) [1/min]
KUD - shape D - ball	6	5	13000 - 19000

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
