Item group

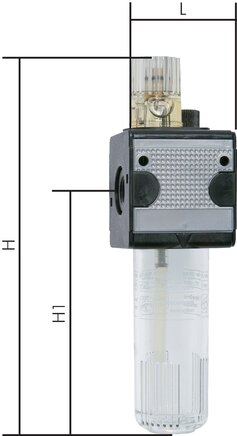

Micro mist lubricators - Multifix model series 1 & 2, up to 4700 l/min
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, oil tank: polycarbonate
Temperature range:
-10 to +60 °C
Media:
Compressed air, neutral gases
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
max. 16 bar (with metal bowl max. 20 bar*)
Oil metering at 1000 l/min:
approx. 10 - 20 drops/min
Lubricator reaction limit (at 6 bar):
Model series 1: 26 l/min, model series 2: 60 l/min
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Version with protective cage -S, Version with metal bowl* and inspection tube -M
Advantages:
•very fine oil mist
*metal / glass combination drip cap
Documents:
More information
Filter items
more filters
Micro mist lubricators - Multifix model series 1 & 2, up to 4700 l/min:
7 of 7 articles
€92.21
incl. VAT
M OL 14 S
MULTIFIX Micro oil-fog lubricator, G 1/4", Multifix 1, Plastic container with protective cage
€116.16
incl. VAT
€159.83
incl. VAT
M OL 14 N
MULTIFIX Micro oil-fog lubricator with level monitoring, G 1/4", Multifix 1, Plastic container
€348.96
incl. VAT
€127.53
incl. VAT
M OL 12 S
MULTIFIX Micro oil-fog lubricator, G 1/2", Multifix 2, Plastic container with protective cage
€152.36
incl. VAT
€171.16
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
