Item group

Mini pressure gauge, horizontal, class 4

Suitable:

Mini-pressure gauges are mainly used for pneumatic pressure boosters.

Materials:

Housing: Plastic, measuring system and pointer movement: Cu alloy (Ø 23: hand gear: plastic), viewing window: Acrylic glass

Class:

4

Temperature range:

-20 to +60 °C

Protection class:

IP 42
*Display range 0 - 2 MPa corresponds to 0 - 20 bar

Documents:

More information Less information
Mini pressure gauge, horizontal, class 4:
4 of 4 articles
Mini pressure gauge, 23mm, 0 to 10bar, G 1/8"(MW 1023)
MW 1023
Mini pressure gauge, 23mm, 0 to 10bar, G 1/8"
€18.17 incl. VAT
Immediately available

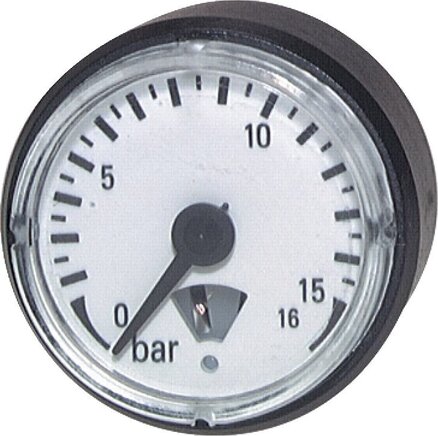

Mini pressure gauge, 23mm, 0 to 16bar, G 1/8"(MW 1623)
MW 1623
Mini pressure gauge, 23mm, 0 to 16bar, G 1/8"
€18.17 incl. VAT
Immediately available

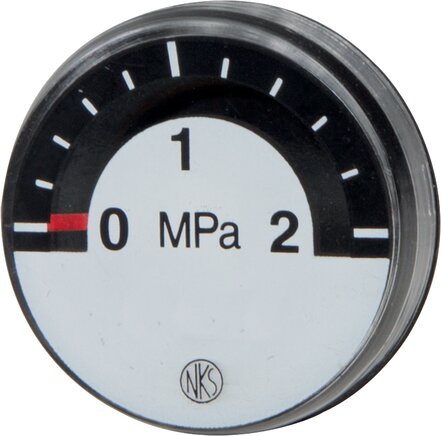

Mini-Manometer, 26mm, 0 -2 MPa, R 1/16"(MW DUE 400)
MW DUE 400 *
Mini-Manometer, 26mm, 0 -2 MPa, R 1/16"
€41.77 incl. VAT
Immediately available

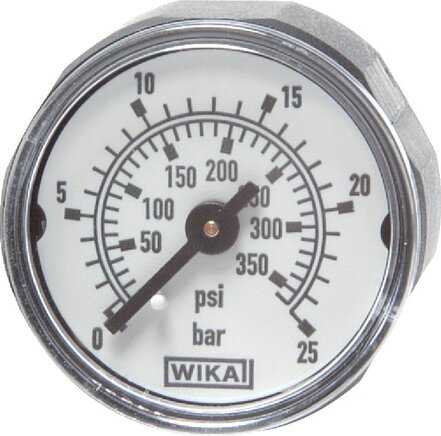

Mini pressure gauge, 27mm, 0 to 25bar, R 1/8"(MW 2527)
MW 2527
Mini pressure gauge, 27mm, 0 to 25bar, R 1/8"
€29.63 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
