Item group

Multi-chamber ejectors, max. 90% vacuum (-0.9 bar), up to 9600 l/min

Materials:

Body: anodised aluminium, nozzles: brass, seal: neoprene

Temperature range:

-20 to +80 °C

Operating pressure:

1 to 7 bar (optimum 4 - 6 bar)

Pressure gauge connection:

G 1/4"

Advantages:

•high vacuum,
•higher flow,
•low cost,
•maintenance free,
•high vacuum, ideal for vacuum packaging or large forces with small suction caps with a simultaneous high vacuum flow
*at 6 bar, ** VILP 64, VLP 96 need 2 pieces (units) (VILP 128: 3 units) Silencer

Documents:

More information Less information

Filter items

Matériau
Please select
G
Please select
A [mm]
Please select
B [mm]
Please select
more filters
Multi-chamber ejectors, max. 90% vacuum (-0.9 bar), up to 9600 l/min:
9 of 9 articles
Multi stage ejectors to 90% vacuum, G 3/4", to 300 l/min(VILP 4)
VILP 4
Multi stage ejectors to 90% vacuum, G 3/4", to 300 l/min
€727.04 incl. VAT
Immediately available

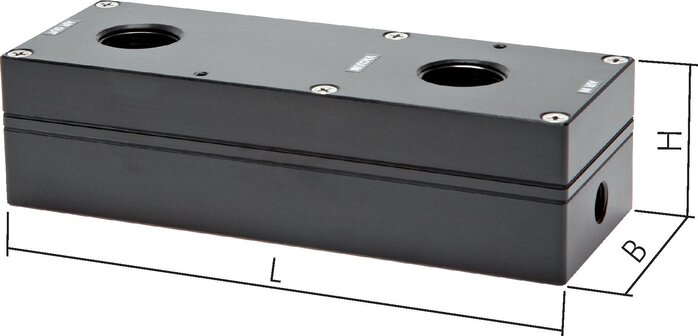

Multi stage ejectors to 90% vacuum, G 3/4", to 500 l/min(VILP 8)
VILP 8
Multi stage ejectors to 90% vacuum, G 3/4", to 500 l/min
€912.08 incl. VAT
Immediately available
Multi stage ejectors to 90% vacuum, G 3/4", to 900 l/min(VILP 12)
VILP 12
Multi stage ejectors to 90% vacuum, G 3/4", to 900 l/min
€1,288.40 incl. VAT
Immediately available

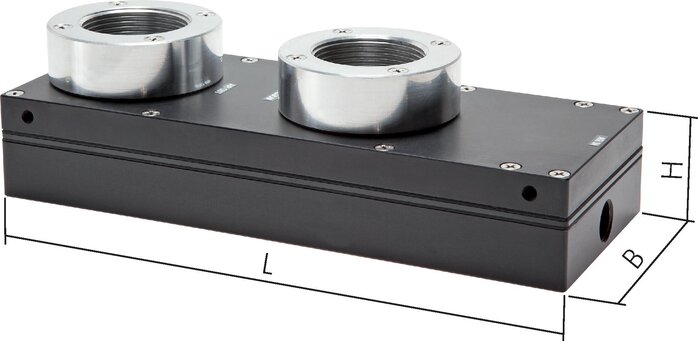

Multi stage ejectors to 90% vacuum, G 1-1/2", to 1050 l/min(VILP 16)
VILP 16
Multi stage ejectors to 90% vacuum, G 1-1/2", to 1050 l/min
€1,460.57 incl. VAT
Immediately available
Multi stage ejectors to 90% vacuum, G 1-1/2", to 2100 l/min(VILP 32)
VILP 32
Multi stage ejectors to 90% vacuum, G 1-1/2", to 2100 l/min
€2,219.37 incl. VAT
Immediately available
Multi stage ejectors to 90% vacuum, G 1-1/2", to 3200 l/min(VILP 48)
VILP 48
Multi stage ejectors to 90% vacuum, G 1-1/2", to 3200 l/min
€2,787.97 incl. VAT
Not in stock
Multi stage ejectors to 90% vacuum, G 2", to 4200 l/min(VILP 64)
VILP 64
Multi stage ejectors to 90% vacuum, G 2", to 4200 l/min
€3,160.74 incl. VAT
deliverable again in ⌀ 3 weeks
Multi stage ejectors to 90% vacuum, G 2", to 6400 l/min(VILP 96)
VILP 96
Multi stage ejectors to 90% vacuum, G 2", to 6400 l/min
€4,859.66 incl. VAT
Immediately available
Multi stage ejectors to 90% vacuum, G 2", to 9600 l/min(VILP 128)
VILP 128
Multi stage ejectors to 90% vacuum, G 2", to 9600 l/min
€6,450.49 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
