Precision pressure regulators - Standard, 550 l/min

Application:

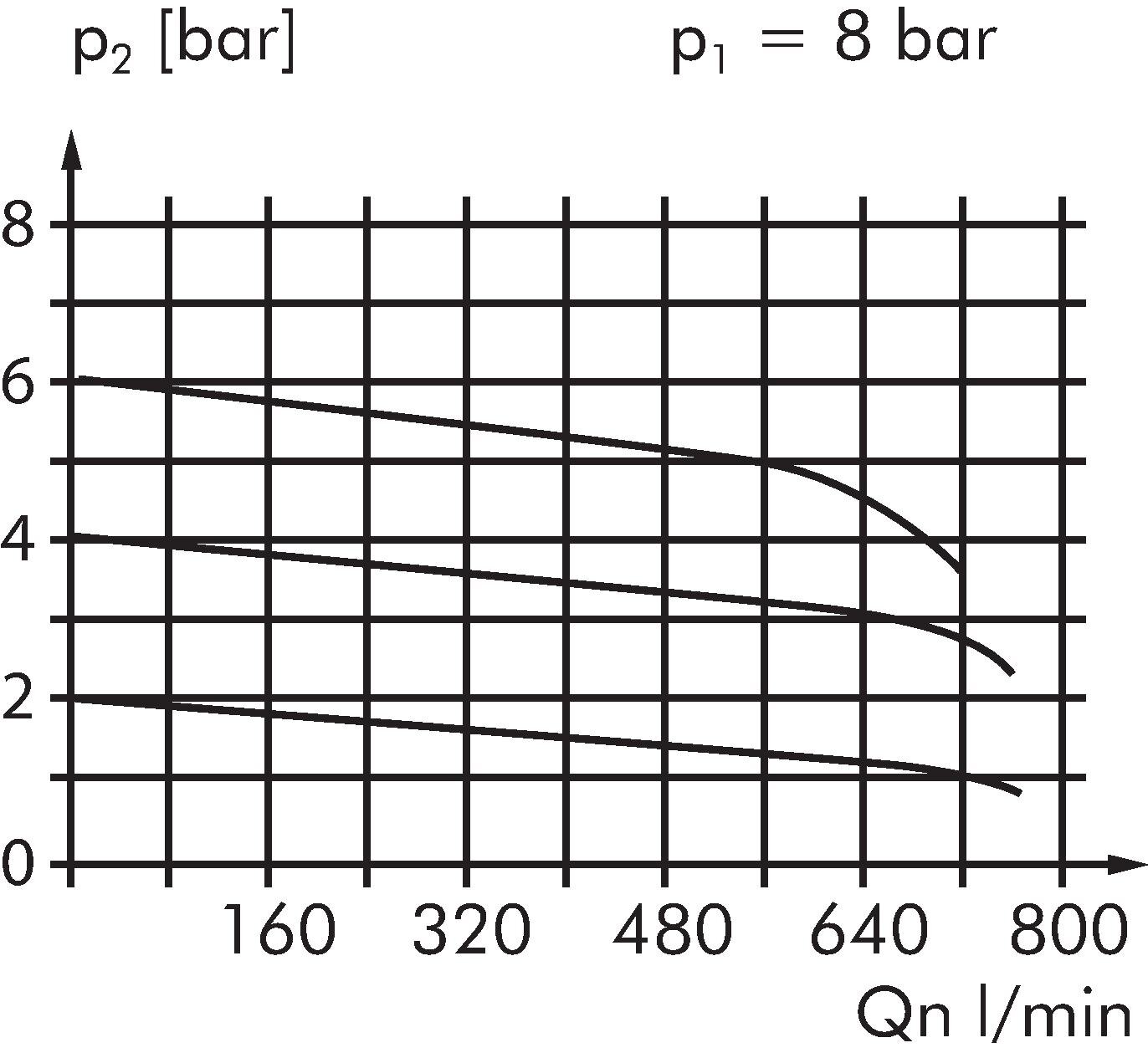

Precision pressure regulators are used where a very high constancy of the secondary pressure is required with small flow quantities. The good regulation and flow characteristic curve is achieved thanks to the fact that ratio of the membrane to the valve seat surface is very high. The regulator is independent of inlet pressure variations to the best possible extent, does not have any own air consumption and can be used with "normal" filtered compressed air.

Version:

Self-relieving pressure regulator

Materials:

Body: die-cast zinc Z410, diaphragms and seals: FKM

Temperature range:

-10 to +60 °C

Input pressure:

max. 16 bar

Pressure gauge connection:

G 1/4"

Switch panel thread:

M 20x1,5

Media:

Compressed air, neutral gases

Scope of delivery:

Pressure regulator incl. 50 mm pressure gauge

Flow:

550 l/min, secondary vent: 100 l/min

Own air consumption:

none (precision pressure regulator with feedback connection: low own air consumption)

Control accuracy:

± 7.5 mbar

Advantages:

•Automatic venting in the event of overpressure on the secondary side,
•Precise pressure regulation regardless of the pre-pressure,
•No own air consumption,
•Robust design, no microfilter necessary for compressed air
*Special regulator for controlling volume boosters (feedback line from the secondary side of the volume booster is used for the regulation), low own air consumption

Documents:

More information Less information

Filter items

Wykonanie
Please select
Zakres regulacji ciśnienia
Please select
Wskaźnik manometru
Please select
Precision pressure regulators - Standard, 550 l/min:
6 of 6 articles
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
