Pressure gauge transducer with front-mounted membrane, 0,2% of the span

Name: Pressure gauge transducer 0 to 0,25 bar, flush-mounted diaphragm of WIKA (WEEE DE92770372)
Brand: WIKA (WEEE DE92770372)
SKU: DMU 0,25 FB ES
Price: 784.91 EUR
Availability: InStock

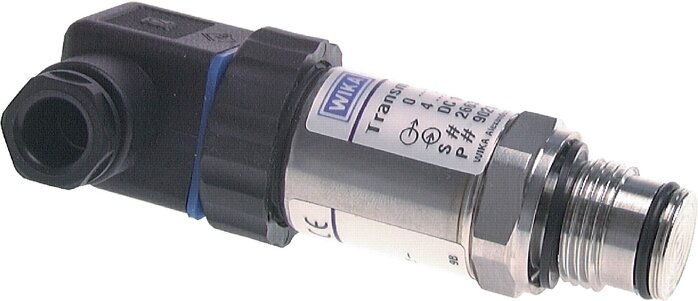

Exemplarische Darstellung: Druckmessumformer mit frontbündiger Membrane

Application:

For high-viscosity and crystallised measured material, adjustable zero and span

Materials:

Body and wetted parts: 1.4571, NBR

Temperature range:

Measured material temperature: -30 to +100 °C, ambient temperature: -20 to +80 °C

Protection class:

IP 65

Connection:

0.25 - 1.6 bar G 1" with O-Ring (NBR), 2.5 - 600 bar G 1/2" with O-Ring (NBR)

Power supply:

10 - 30 V DC

Electrical connection:

Angled plug DIN 43650 / EN 175301-803 A (size 3, 4-pole)

Output signal:

4-20 mA

Non-linearity (IEC 61298-2):

± 0.2 % of span (BFSL)

Accuracy (IEC 61298-2):

± 0,5 % of range

Transmission fluid*:

Silicone oil

Note:

WIKA Type S-11

*for the food industry, please order vegetable oil extra

Documents:

More information

Pressure gauge transducer with front-mounted membrane, 0,2% of the span:

20 of 20 articles

DMU 0,25 FB ES

Pressure gauge transducer 0 to 0,25 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1" (male thread)	0 - 0,25	2

DMU 0,4 FB ES

Pressure gauge transducer 0 to 0,4 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1" (male thread)	0 - 0,4	2

DMU 0,6 FB ES

Pressure gauge transducer 0 to 0,6 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1" (male thread)	0 - 0,6	4

DMU 1 FB ES

Pressure gauge transducer 0 to 1 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1" (male thread)	0 - 1	5

DMU 1,6 FB ES

Pressure gauge transducer 0 to 1,6 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1" (male thread)	0 - 1,6	10

DMU 2,5 FB ES

Pressure gauge transducer 0 to 2,5 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 2.5	10

DMU 4 FB ES

Pressure gauge transducer 0 to 4 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 4	17

DMU 6 FB ES

Pressure gauge transducer 0 to 6 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 6	35

DMU 10 FB ES

Pressure gauge transducer 0 to 10 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 10	35

DMU 16 FB ES

Pressure gauge transducer 0 to 16 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 16	80

DMU 25 FB ES

Pressure gauge transducer 0 to 25 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 25	50

DMU 40 FB ES

Pressure gauge transducer 0 to 40 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 40	80

DMU 60 FB ES

Pressure gauge transducer 0 to 60 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 60	120

DMU 100 FB ES

Pressure gauge transducer 0 to 100 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 100	200

DMU 160 FB ES

Pressure gauge transducer 0 to 160 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 160	320

DMU 250 FB ES

Pressure gauge transducer 0 to 250 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 250	500

DMU 400 FB ES

Pressure gauge transducer 0 to 400 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 400	800

DMU 600 FB ES

Pressure gauge transducer 0 to 600 bar, flush-mounted diaphragm

€784.91 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread	Measurement range [bar]	Safe at overpressure up to [bar]
Pressure measuring transducer	G 1/2" (male thread)	0 - 600	1200

DMU FB AS 12

Einschweißstutzen Ø50mm, G 1/2"

€124.06 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread
Accessories, set-in nozzle Ø 50 (21 high)	G 1/2" (female thread)

DMU FB AS 10

Einschweißstutzen Ø50mm, G 1"

€124.06 incl. VAT

Quantity

pcs

Immediately available

Version	Connection thread
Accessories, set-in nozzle Ø 50 (21 high)	G 1" (female thread)

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
