Item group

Pressure switch - flat connector, up to 350 bar

Materials:

Body: zinc-plated steel or stainless steel 1.4305 (vacuum switch: brass), diaphragms**: NBR

Temperature range:

-25 to +85 °C

Switch-back difference (hysteresis)

15 - 20 % (vacuum switch 15 - 25%) of the value that has been set

Protection class:

IP 65 (clamps IP 00)

Electrical connection:

Blade connector 6.3x0.8 (AMP 6.3x0.8)

Media:

Hydraulic oil, oil emulsion, air, (also partially suitable for water)
*at 30 V DC, **settings range > 10 bar controller using stainless steel pistons, seal: UR, ***Ø 28, switchback difference: 10 - 15%

Documents:

More information Less information
Pressure switch - flat connector, up to 350 bar:
20 of 27 articles

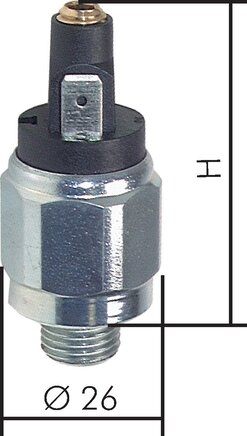

Pressure switch, Zinc plated steel 0,5 to 2 bar (Closer (NO)), G 1/4"(DRSS 2 B)
DRSS 2 B
Pressure switch, Zinc plated steel 0,5 to 2 bar (Closer (NO)), G 1/4"
€27.89 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 1 to 10 bar (Closer (NO)), G 1/4"(DRSS 10 B)
DRSS 10 B
Pressure switch, Zinc plated steel 1 to 10 bar (Closer (NO)), G 1/4"
€27.89 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 10 to 70 bar (Closer (NO)), G 1/4"(DRSS 70 B)
DRSS 70 B
Pressure switch, Zinc plated steel 10 to 70 bar (Closer (NO)), G 1/4"
€33.19 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 50 to 200 bar (Closer (NO)), G 1/4"(DRSS 200 B)
DRSS 200 B
Pressure switch, Zinc plated steel 50 to 200 bar (Closer (NO)), G 1/4"
€44.29 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 100 to 350 bar (Closer (NO)), G 1/4"(DRSS 350 B)
DRSS 350 B ***
Pressure switch, Zinc plated steel 100 to 350 bar (Closer (NO)), G 1/4"
€45.71 incl. VAT
Immediately available
Pressure switch, 1.4305 0,5 to 2 bar (Closer (NO)), G 1/4"(DRSS 2 B ES)
DRSS 2 B ES
Pressure switch, 1.4305 0,5 to 2 bar (Closer (NO)), G 1/4"
€51.27 incl. VAT
Immediately available
Pressure switch, 1.4305 1 to 10 bar (Closer (NO)), G 1/4"(DRSS 10 B ES)
DRSS 10 B ES
Pressure switch, 1.4305 1 to 10 bar (Closer (NO)), G 1/4"
€51.27 incl. VAT
Immediately available
Pressure switch, 1.4305 10 to 70 bar (Closer (NO)), G 1/4"(DRSS 70 B ES)
DRSS 70 B ES
Pressure switch, 1.4305 10 to 70 bar (Closer (NO)), G 1/4"
€69.31 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 0,5 to 2 bar (Opener (NC)), G 1/4"(DRSO 2 B)
DRSO 2 B
Pressure switch, Zinc plated steel 0,5 to 2 bar (Opener (NC)), G 1/4"
€27.89 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 1 to 10 bar (Opener (NC)), G 1/4"(DRSO 10 B)
DRSO 10 B
Pressure switch, Zinc plated steel 1 to 10 bar (Opener (NC)), G 1/4"
€27.89 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 10 to 70 bar (Opener (NC)), G 1/4"(DRSO 70 B)
DRSO 70 B
Pressure switch, Zinc plated steel 10 to 70 bar (Opener (NC)), G 1/4"
€33.19 incl. VAT
deliverable again in ⌀ 3 days
Pressure switch, Zinc plated steel 50 to 200 bar (Opener (NC)), G 1/4"(DRSO 200 B)
DRSO 200 B
Pressure switch, Zinc plated steel 50 to 200 bar (Opener (NC)), G 1/4"
€41.15 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 100 to 350 bar (Opener (NC)), G 1/4"(DRSO 350 B)
DRSO 350 B ***
Pressure switch, Zinc plated steel 100 to 350 bar (Opener (NC)), G 1/4"
€45.71 incl. VAT
Immediately available
Pressure switch, 1.4305 0,5 to 2 bar (Opener (NC)), G 1/4"(DRSO 2 B ES)
DRSO 2 B ES
Pressure switch, 1.4305 0,5 to 2 bar (Opener (NC)), G 1/4"
€51.27 incl. VAT
Immediately available
Pressure switch, 1.4305 1 to 10 bar (Opener (NC)), G 1/4"(DRSO 10 B ES)
DRSO 10 B ES
Pressure switch, 1.4305 1 to 10 bar (Opener (NC)), G 1/4"
€51.27 incl. VAT
Immediately available
Pressure switch, 1.4305 10 to 70 bar (Opener (NC)), G 1/4"(DRSO 70 B ES)
DRSO 70 B ES
Pressure switch, 1.4305 10 to 70 bar (Opener (NC)), G 1/4"
€69.31 incl. VAT
Immediately available
Vacuum switch, Brass -0,98 to -0,2 bar (Changer), G 1/8"(VAKUSW 18 B)
VAKUSW 18 B
Vacuum switch, Brass -0,98 to -0,2 bar (Changer), G 1/8"
€53.90 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 0,5 to 2 bar (Changer), G 1/4"(DRSW 2 B)
DRSW 2 B
Pressure switch, Zinc plated steel 0,5 to 2 bar (Changer), G 1/4"
€66.72 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 1 to 10 bar (Changer), G 1/4"(DRSW 10 B)
DRSW 10 B
Pressure switch, Zinc plated steel 1 to 10 bar (Changer), G 1/4"
€66.72 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 10 to 70 bar (Changer), G 1/4"(DRSW 70 B)
DRSW 70 B
Pressure switch, Zinc plated steel 10 to 70 bar (Changer), G 1/4"
€66.72 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
