Item group

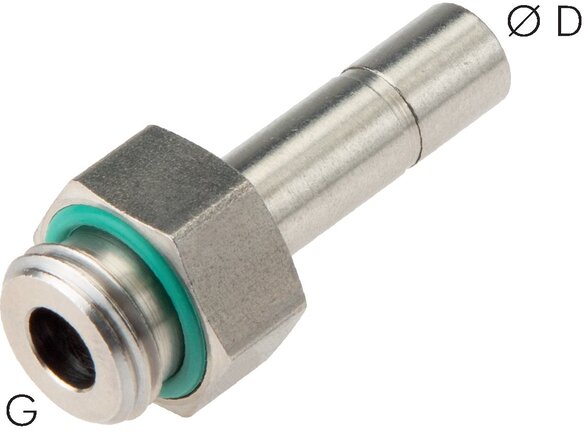

Push in fitting-screw-in sockets, cylindrical thread, ES LE

Materials:

Type stainless steel: Body and release ring: 1.4401, seals FKM, green (FDA 21 CFR 177.2600), Holding claws: Stainless steel 1.4310, Lubricant: Silicone grease (NSF / ANSI 51 & 61)

Type PVDF: body and release ring: PVDF (FDA-approved), thread part: stainless steel 1.4401, seals: FKM, green (FDA 21 CFR 177.2600), retaining claws: Stainless steel 1.4310, lubricant: Silicone grease (NSF / ANSI 51 & 61)

Temperature range:

Type stainless steel: -20 °C to +200 °C (Ø 16: -15°C to +190°C)

Type PVDF: -20 °C to +120 °C

Operating pressure:

Type stainless steel: -0.95 to 20 bar

Type PVDF: Ø 4 - 6 mm: -0.95 to 20 bar (+20 °C), -0.95 to 10 bar (+100 °C), -0.95 to 3 bar (+120 °C), Ø 8 mm: -0.95 to 20 bar (+20 °C), -0.95 to 8 bar (+100 °C), -0.95 to 3 bar (+120 °C), Ø 10 - 12 mm: -0.95 to 12 bar (+20 °C), -0.95 to 6 bar (+100 °C), -0.95 to 3 bar (+120 °C)

Media:

oiled and unoiled compressed air, non-hazardous gasses and liquids

Advantages:

•Available with conical thread or with cylindrical thread with chambered O-ring,
•Gaskets and lubricants with approval according to FDA or NSF/ANSI,
•Used plastics are FDA approved
•type PVDF: lighter and cheaper than push-in fittings made of stainless steel with simultaneous high chemical resistance,
•type PVDF: transparent body allows visibility of the medium inside the connector

Documents:

More information Less information

Filter items

G
Please select
D [mm]
Please select
Push in fitting-screw-in sockets, cylindrical thread, ES LE:
9 of 9 articles
Screw in sockets G 1/8"-4mm push in nipple, IQS-ES LE(IQSG 184H G ES LE)
IQSG 184H G ES LE
Screw in sockets G 1/8"-4mm push in nipple, IQS-ES LE
€13.22 incl. VAT
Immediately available
Screw in sockets G 1/8"-6mm push in nipple, IQS-ES LE(IQSG 186H G ES LE)
IQSG 186H G ES LE
Screw in sockets G 1/8"-6mm push in nipple, IQS-ES LE
€13.46 incl. VAT
Immediately available
Screw in sockets G 1/8"-8mm push in nipple, IQS-ES LE(IQSG 188H G ES LE)
IQSG 188H G ES LE
Screw in sockets G 1/8"-8mm push in nipple, IQS-ES LE
€13.91 incl. VAT
Immediately available
Screw in sockets G 1/4"-6mm push in nipple, IQS-ES LE(IQSG 146H G ES LE)
IQSG 146H G ES LE
Screw in sockets G 1/4"-6mm push in nipple, IQS-ES LE
€15.86 incl. VAT
Immediately available
Screw in sockets G 1/4"-8mm push in nipple, IQS-ES LE(IQSG 148H G ES LE)
IQSG 148H G ES LE
Screw in sockets G 1/4"-8mm push in nipple, IQS-ES LE
€16.46 incl. VAT
Immediately available
Screw in sockets G 1/4"-10mm push in nipple, IQS-ES LE(IQSG 1410H G ES LE)
IQSG 1410H G ES LE
Screw in sockets G 1/4"-10mm push in nipple, IQS-ES LE
€17.58 incl. VAT
Immediately available
Screw in sockets G 3/8"-10mm push in nipple, IQS-ES LE(IQSG 3810H G ES LE)
IQSG 3810H G ES LE
Screw in sockets G 3/8"-10mm push in nipple, IQS-ES LE
€18.86 incl. VAT
Immediately available
Screw in sockets G 3/8"-12mm push in nipple, IQS-ES LE(IQSG 3812H G ES LE)
IQSG 3812H G ES LE
Screw in sockets G 3/8"-12mm push in nipple, IQS-ES LE
€21.17 incl. VAT
Immediately available
Screw in sockets G 1/2"-12mm push in nipple, IQS-ES LE(IQSG 1212H G ES LE)
IQSG 1212H G ES LE
Screw in sockets G 1/2"-12mm push in nipple, IQS-ES LE
€27.62 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
