Item group

Push-in fittings, Inch

Materials:

Body: nickel-plated brass / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)

Temperature range:

0 to +60 °C

Operating pressure:

-0,95 to 10 bar

Media:

oiled and unoiled compressed air, neutral gases and water (may be used only after we approve the performance specifications)

Documents:

More information Less information

Filter items

Height balance suction cup [mm]
Please select
Nominal width [mm]
Please select
Suction diameter [mm]
Please select
Suction volumes [cm³]
Please select
more filters
Push-in fittings, Inch:
20 of 23 articles
Straight push in fitting UNF 10-32-1/8" (3,17 mm), IQS-Inch(IQSG U10-1/8)
IQSG U10-1/8
Straight push in fitting UNF 10-32-1/8" (3,17 mm), IQS-Inch
€2.34 incl. VAT
Immediately available
Straight push in fitting UNF 10-32-5/32" (3,97 mm), IQS-Inch(IQSG U10-5/32)
IQSG U10-5/32
Straight push in fitting UNF 10-32-5/32" (3,97 mm), IQS-Inch
€2.44 incl. VAT
Immediately available
Straight push in fitting UNF 10-32-3/16" (4,76 mm), IQS-Inch(IQSG U10-3/16)
IQSG U10-3/16
Straight push in fitting UNF 10-32-3/16" (4,76 mm), IQS-Inch
€2.58 incl. VAT
Immediately available
Straight push in fitting UNF 10-32-1/4" (6,35 mm), IQS-Inch(IQSG U10-1/4)
IQSG U10-1/4
Straight push in fitting UNF 10-32-1/4" (6,35 mm), IQS-Inch
€2.58 incl. VAT
Immediately available

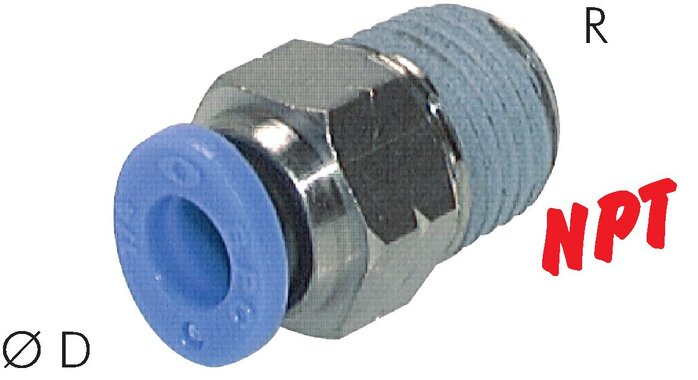

Straight push in fitting NPT 1/16"-1/8" (3,17 mm), IQS-Inch(IQSG 116-1/8 NPT)
IQSG 116-1/8 NPT
Straight push in fitting NPT 1/16"-1/8" (3,17 mm), IQS-Inch
€2.34 incl. VAT
Immediately available
Straight push in fitting NPT 1/16"-5/32" (3,97 mm), IQS-Inch(IQSG 116-5/32 NPT)
IQSG 116-5/32 NPT
Straight push in fitting NPT 1/16"-5/32" (3,97 mm), IQS-Inch
€2.34 incl. VAT
Immediately available
Straight push in fitting NPT 1/8"-5/32" (3,97 mm), IQS-Inch(IQSG 18-5/32 NPT)
IQSG 18-5/32 NPT
Straight push in fitting NPT 1/8"-5/32" (3,97 mm), IQS-Inch
€1.93 incl. VAT
Immediately available
Straight push in fitting NPT 1/8"-3/16" (4,76 mm), IQS-Inch(IQSG 18-3/16 NPT)
IQSG 18-3/16 NPT
Straight push in fitting NPT 1/8"-3/16" (4,76 mm), IQS-Inch
€2.01 incl. VAT
Immediately available
Straight push in fitting NPT 1/8"-1/4" (6,35 mm), IQS-Inch(IQSG 18-1/4 NPT)
IQSG 18-1/4 NPT
Straight push in fitting NPT 1/8"-1/4" (6,35 mm), IQS-Inch
€2.01 incl. VAT
Immediately available
Straight push in fitting NPT 1/8"-5/16" (7,94 mm), IQS-Inch(IQSG 18-5/16 NPT)
IQSG 18-5/16 NPT
Straight push in fitting NPT 1/8"-5/16" (7,94 mm), IQS-Inch
€2.40 incl. VAT
Immediately available
Straight push in fitting NPT 1/8"-3/8" (9,52 mm), IQS-Inch(IQSG 18-3/8 NPT)
IQSG 18-3/8 NPT
Straight push in fitting NPT 1/8"-3/8" (9,52 mm), IQS-Inch
€3.06 incl. VAT
Immediately available
Straight push in fitting NPT 1/4"-5/32" (3,97 mm), IQS-Inch(IQSG 14-5/32 NPT)
IQSG 14-5/32 NPT
Straight push in fitting NPT 1/4"-5/32" (3,97 mm), IQS-Inch
€2.14 incl. VAT
Immediately available
Straight push in fitting NPT 1/4"-3/16" (4,76 mm), IQS-Inch(IQSG 14-3/16 NPT)
IQSG 14-3/16 NPT
Straight push in fitting NPT 1/4"-3/16" (4,76 mm), IQS-Inch
€2.33 incl. VAT
Immediately available
Straight push in fitting NPT 1/4"-1/4" (6,35 mm), IQS-Inch(IQSG 14-1/4 NPT)
IQSG 14-1/4 NPT
Straight push in fitting NPT 1/4"-1/4" (6,35 mm), IQS-Inch
€2.33 incl. VAT
Immediately available
Straight push in fitting NPT 1/4"-5/16" (7,94 mm), IQS-Inch(IQSG 14-5/16 NPT)
IQSG 14-5/16 NPT
Straight push in fitting NPT 1/4"-5/16" (7,94 mm), IQS-Inch
€2.49 incl. VAT
Immediately available
Straight push in fitting NPT 1/4"-3/8" (9,52 mm), IQS-Inch(IQSG 14-3/8 NPT)
IQSG 14-3/8 NPT
Straight push in fitting NPT 1/4"-3/8" (9,52 mm), IQS-Inch
€3.03 incl. VAT
Immediately available
Straight push in fitting NPT 1/4"-1/2" (12,7 mm), IQS-Inch(IQSG 14-1/2 NPT)
IQSG 14-1/2 NPT
Straight push in fitting NPT 1/4"-1/2" (12,7 mm), IQS-Inch
€3.55 incl. VAT
Immediately available
Straight push in fitting NPT 3/8"-1/4" (6,35 mm), IQS-Inch(IQSG 38-1/4 NPT)
IQSG 38-1/4 NPT
Straight push in fitting NPT 3/8"-1/4" (6,35 mm), IQS-Inch
€3.03 incl. VAT
Immediately available
Straight push in fitting NPT 3/8"-5/16" (7,94 mm), IQS-Inch(IQSG 38-5/16 NPT)
IQSG 38-5/16 NPT
Straight push in fitting NPT 3/8"-5/16" (7,94 mm), IQS-Inch
€2.70 incl. VAT
Immediately available
Straight push in fitting NPT 3/8"-3/8" (9,52 mm), IQS-Inch(IQSG 38-3/8 NPT)
IQSG 38-3/8 NPT
Straight push in fitting NPT 3/8"-3/8" (9,52 mm), IQS-Inch
€3.34 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
