Item group

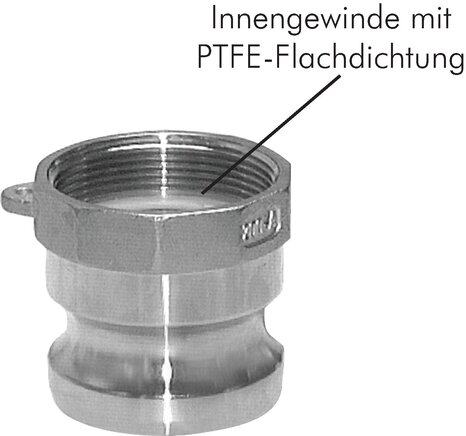

Quick coupling plug with FT, EN 14420-7 (DIN 2828), Type A (AF)

Materials:

Body: stainless steel 1.4408, seal: NBR, handle, ring: stainless steel (female thread is equipped with PTFE flat seals)

Temperature range:

-10 to +80 °C

Advantages:

•Full throughway,
•little pressure loss,
•also suitable for solids, since there are no internal valves,
•compatible with plugs / sockets according to MIL-C-27487

Information:

The EN couplings only differ with regard to the version of the female thread and hose connection for standard couplings, they are completely compatible with standard couplings in accordance with ML-C-27487

Documents:

More information Less information
Quick coupling plug with FT, EN 14420-7 (DIN 2828), Type A (AF):
8 of 8 articles
DIN/EN-Kamlock plug (A/AF) G 3/4"(FT), Stainless steel (1.4408)(KLSGI 34 ES-DIN)
KLSGI 34 ES-DIN
DIN/EN-Kamlock plug (A/AF) G 3/4"(FT), Stainless steel (1.4408)
€37.12 incl. VAT
Immediately available
DIN/EN-Kamlock plug (A/AF) G 1"(FT), Stainless steel (1.4408)(KLSGI 10 ES-DIN)
KLSGI 10 ES-DIN
DIN/EN-Kamlock plug (A/AF) G 1"(FT), Stainless steel (1.4408)
€40.57 incl. VAT
Immediately available
DIN/EN-Kamlock plug (A/AF) G 1-1/4"(FT), Stainless steel (1.4408)(KLSGI 114 ES-DIN)
KLSGI 114 ES-DIN
DIN/EN-Kamlock plug (A/AF) G 1-1/4"(FT), Stainless steel (1.4408)
€59.63 incl. VAT
Immediately available
DIN/EN-Kamlock plug (A/AF) G 1-1/2"(FT), Stainless steel (1.4408)(KLSGI 112 ES-DIN)
KLSGI 112 ES-DIN
DIN/EN-Kamlock plug (A/AF) G 1-1/2"(FT), Stainless steel (1.4408)
€56.54 incl. VAT
Immediately available
DIN/EN-Kamlock plug (A/AF) G 2"(FT), Stainless steel (1.4408)(KLSGI 20 ES-DIN)
KLSGI 20 ES-DIN
DIN/EN-Kamlock plug (A/AF) G 2"(FT), Stainless steel (1.4408)
€75.84 incl. VAT
Immediately available
DIN/EN-Kamlock plug (A/AF) G 2-1/2"(FT), Stainless steel (1.4408)(KLSGI 212 ES-DIN)
KLSGI 212 ES-DIN
DIN/EN-Kamlock plug (A/AF) G 2-1/2"(FT), Stainless steel (1.4408)
€121.81 incl. VAT
Immediately available
DIN/EN-Kamlock plug (A/AF) G 3"(FT), Stainless steel (1.4408)(KLSGI 30 ES-DIN)
KLSGI 30 ES-DIN
DIN/EN-Kamlock plug (A/AF) G 3"(FT), Stainless steel (1.4408)
€132.38 incl. VAT
Immediately available
DIN/EN-Kamlock plug (A/AF) G 4"(FT), Stainless steel (1.4408)(KLSGI 40 ES-DIN)
KLSGI 40 ES-DIN
DIN/EN-Kamlock plug (A/AF) G 4"(FT), Stainless steel (1.4408)
€290.76 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
