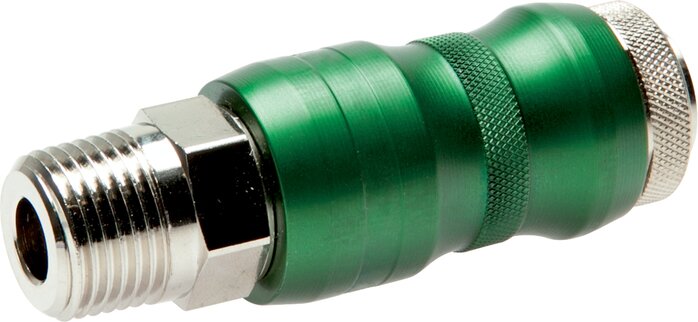

Safety coupling socket with manual slide valve & male thread, NW 7.2

Materials:

Body: nickel-plated brass/hardened steel, sliding sleeve: anodized aluminium, seal: NBR

Temperature range:

-20 to +100 °C

Operating pressure:

0 to 20 bar

Flow*:

2050 l/min

Function:

This safety coupling is a combination of a manual slide valve and the quick coupling. The coupling opens only when the plug side is vented through the sliding sleeve. The sliding sleeve can be moved only in the coupled state and functions like a 3/2-way manual slide valve.

Compatible with**:

Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
*6 bar input pressure, 1 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

Documents:

More information Less information

Filter items

Thread external
Safety coupling socket with manual slide valve & male thread, NW 7.2:
3 of 3 articles

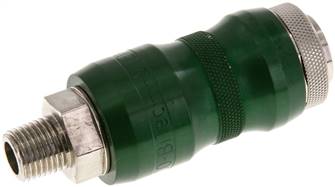

Safety coupling socket (NW7,2) R 1/4"(male thread) m. HSV(KDGSI 14 NW7 HSV)
KDGSI 14 NW7 HSV
Safety coupling socket (NW7,2) R 1/4"(male thread) m. HSV
€50.03 incl. 19 % VAT
Immediately available

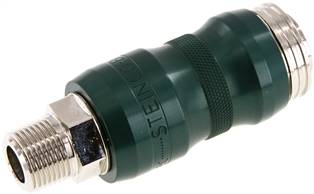

Safety coupling socket (NW7,2) R 3/8"(male thread) m. HSV(KDGSI 38 NW7 HSV)
KDGSI 38 NW7 HSV
Safety coupling socket (NW7,2) R 3/8"(male thread) m. HSV
€50.37 incl. 19 % VAT
Immediately available

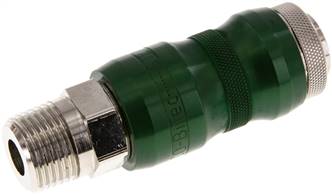

Safety coupling socket (NW7,2) R 1/2"(male thread) m. HSV(KDGSI 12 NW7 HSV)
KDGSI 12 NW7 HSV
Safety coupling socket (NW7,2) R 1/2"(male thread) m. HSV
€50.69 incl. 19 % VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
