Item group

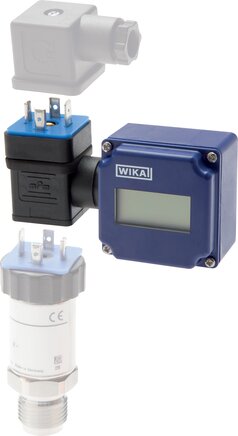

Sandwich plug-on display for measuring transducer (4-20 mA), LCD
Version:
The plug-in display is inserted directly on the measurement transducer with 4 - 20 mA output and displays the measured value. The instrument is provided electrical energy from the circuit of the 4 - 20mA signal and does not need any additional auxiliary energy.
Materials:
Housing: ABS, front window: polycarbonate
Display:
4-digit LCD display, height of digits 10 mm
Temperature range:
0 to +50 °C
Protection class:
IP 65
Electrical connection:
A transmitter with 4-20 mA outlet in a 2-wire system and elbow plug DIN 43650 / EN 175301-803 (size 3, 4-pole)
Conversion rate:
5 measurements / second
Display accuracy:
± 0.2 % of span, ± 1 digit
Programming:
Using 3 keys under the housing face plate, menu guided: scaling of the display area, decimal point, cushioning
Dimensions:
front frame: 49 x 49 mm, depth: 35, 5 mm
Note:
WIKA Type A-AI-1
Documents:
More information
Filter items
more filters
Sandwich plug-on display for measuring transducer (4-20 mA), LCD:
1 of 1 articles
€332.80
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
