Item group

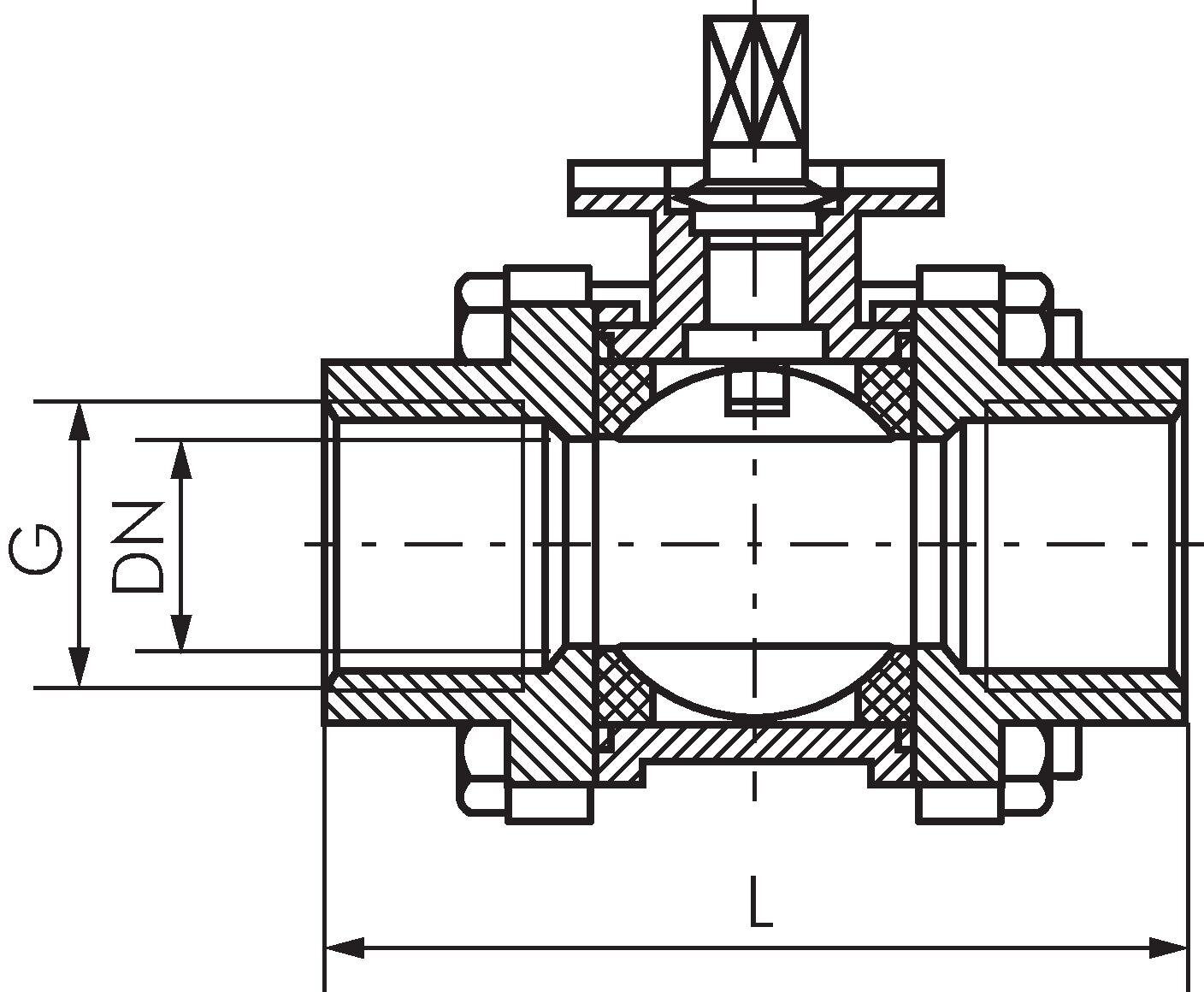

Stainless steel-ball valves 3-part, with direct assembly flange, PN 63
Materials:
Body: 1.4408, ball: 1.4408, seal: PTFE / FKM
Temperature range:
-20 to +180 °C
Media:
Water, oil, compressed air, vacuum (max. -0.9 bar), fuels, solvents, aggressive media
Optional:
Certificate 3.1
Advantages:
•Length according to DIN 3202-M3
•A drive can be mounted directly on the ISO 5211 direct assembly flange to automate the ball valve.
•A drive can be mounted directly on the ISO 5211 direct assembly flange to automate the ball valve.
*length not according to DIN
Documents:
More information
Stainless steel-ball valves 3-part, with direct assembly flange, PN 63:
11 of 11 articles
€155.14 incl. 19 % VAT
€292.94 incl. 19 % VAT
€409.07 incl. 19 % VAT
€843.90 incl. 19 % VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
