Skupina artiklov

Vrtilni vijacni spojniki v obliki T

Temperature range:

-60°C up to max. +300°C (with seal: -20°C up to max. +80°C)

Recommended raw materials:

Copper, polyamide (with reinforced sleeve)

Note:

The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353). When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.

Materials:

Body: Brass, seals: Zinc plated steel, with NBR insert

Dokumenti:

Več informacij Manj podatkov

Filtriraj artikle

D
Prosimo, izberite
D1
Prosimo, izberite
H
Prosimo, izberite
L
Prosimo, izberite
več filtrov
Vrtilni vijacni spojniki v obliki T:
8 od 8 izdelkov
T compression ring fitting G 1/8"-4 (M8x1)mm, brass(KTH 184 MS)
KTH 184 MS
T compression ring fitting G 1/8"-4 (M8x1)mm, brass
35,30 € z DDV
Takoj dobavljivo

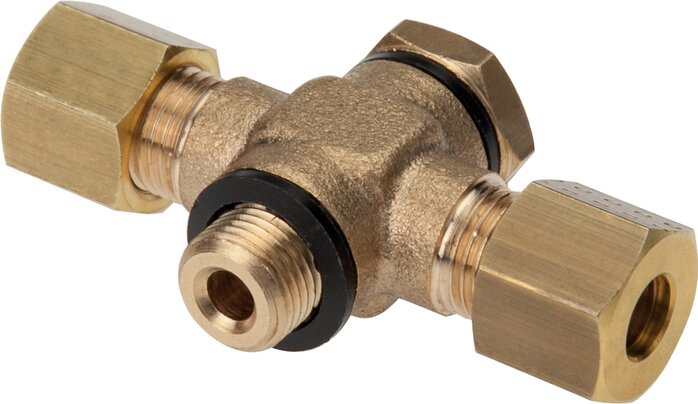

T compression ring fitting G 1/8"-6 (M10x1)mm, brass(KTH 186 MS)
KTH 186 MS
T compression ring fitting G 1/8"-6 (M10x1)mm, brass
34,39 € z DDV
Takoj dobavljivo
T compression ring fitting G 1/4"-8 (M12x1)mm, brass(KTH 148 MS)
KTH 148 MS
T compression ring fitting G 1/4"-8 (M12x1)mm, brass
37,79 € z DDV
Takoj dobavljivo
T compression ring fitting G 3/8"-10 (M16x1,5)mm, brass(KTH 3810 MS)
KTH 3810 MS
T compression ring fitting G 3/8"-10 (M16x1,5)mm, brass
64,94 € z DDV
Takoj dobavljivo
T compression ring fitting G 1/4"-12 (M18x1,5)mm, brass(KTH 1412 MS)
KTH 1412 MS
T compression ring fitting G 1/4"-12 (M18x1,5)mm, brass
54,18 € z DDV
Takoj dobavljivo
T compression ring fitting G 3/8"-12 (M18x1,5)mm, brass(KTH 3812 MS)
KTH 3812 MS
T compression ring fitting G 3/8"-12 (M18x1,5)mm, brass
65,50 € z DDV
Takoj dobavljivo
T compression ring fitting G 3/8"-14 (M20x1,5)mm, brass(KTH 3814 MS)
KTH 3814 MS
T compression ring fitting G 3/8"-14 (M20x1,5)mm, brass
73,24 € z DDV
Takoj dobavljivo
T compression ring fitting G 1/2"-14 (M20x1,5)mm, brass(KTH 1214 MS)
KTH 1214 MS
T compression ring fitting G 1/2"-14 (M20x1,5)mm, brass
75,64 € z DDV
Takoj dobavljivo
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
