Vticni vijacni spoji v obliki L, LE (palec)
Materials:
Body and sleeve: POM (FDA 21 CFR 177.2470, NSF/ANSI 51 & 61), retaining claw: stainless steel, seals: EPDM (FDA 21 CFR 177.2600), lubricant: Silicone grease (NSF/ANSI 51 & 61)
Temperature range:
0 do +65 °C
Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*
Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals
Approvals:
Materials according to FDA & NSF/ANSI
Advantages:
•available for metric and imperial hoses, G thread,
•R-thread and NPT-thread available,
•compatible with many other manufacturers
•R-thread and NPT-thread available,
•compatible with many other manufacturers
*For temperatures >20°C, calculate operating pressure with this correction factor: 30°C: 0.88 - 40°C: 0.77 - 50°C: 0.69 - 65°C: 0.63, example: 50°C, operating pressure = 16 bar * 0.69 = 11 bar
Dokumenti:
Več informacij
Vticni vijacni spoji v obliki L, LE (palec):
14 od 14 izdelkov
1,27 €
z DDV
1,27 €
z DDV

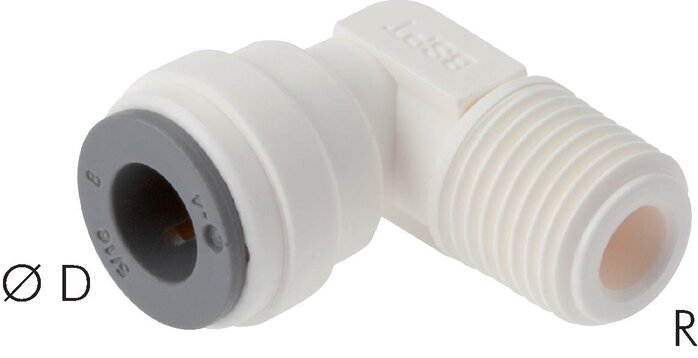

IQSL 14-5/16 LE
Angle push in fittingR 1/4"-5/16" (7,94 mm), IQS-LE (EPDM-seal)
1,54 €
z DDV
IQSL 38-5/16 LE
Angle push in fittingR 3/8"-5/16" (7,94 mm), IQS-LE (EPDM-seal)
1,65 €
z DDV
IQSL 18-3/16 NPT LE
Angle push in fittingNPT 1/8"-3/16" (4,76 mm), IQS-LE (EPDM-seal)
1,40 €
z DDV
IQSL 18-1/4 NPT LE
Angle push in fittingNPT 1/8"-1/4" (6,35 mm), IQS-LE (EPDM-seal)
1,27 €
z DDV
IQSL 14-1/4 NPT LE
Angle push in fittingNPT 1/4"-1/4" (6,35 mm), IQS-LE (EPDM-seal)
1,27 €
z DDV
IQSL 14-5/16 NPT LE
Angle push in fittingNPT 1/4"-5/16" (7,94 mm), IQS-LE (EPDM-seal)
1,54 €
z DDV
IQSL 14-3/8 NPT LE
Angle push in fittingNPT 1/4"-3/8" (9,52 mm), IQS-LE (EPDM-seal)
1,79 €
z DDV
IQSL 38-1/4 NPT LE
Angle push in fittingNPT 3/8"-1/4" (6,35 mm), IQS-LE (EPDM-seal)
1,40 €
z DDV
IQSL 38-5/16 NPT LE
Angle push in fittingNPT 3/8"-5/16" (7,94 mm), IQS-LE (EPDM-seal)
1,65 €
z DDV
IQSL 38-3/8 NPT LE
Angle push in fittingNPT 3/8"-3/8" (9,52 mm), IQS-LE (EPDM-seal)
1,79 €
z DDV
IQSL 38-1/2 NPT LE
Angle push in fittingNPT 3/8"-1/2" (12,7 mm), IQS-LE (EPDM-seal)
1,68 €
z DDV
IQSL 12-1/2 NPT LE
Angle push in fittingNPT 1/2"-1/2" (12,7 mm), IQS-LE (EPDM-seal)
1,83 €
z DDV
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
