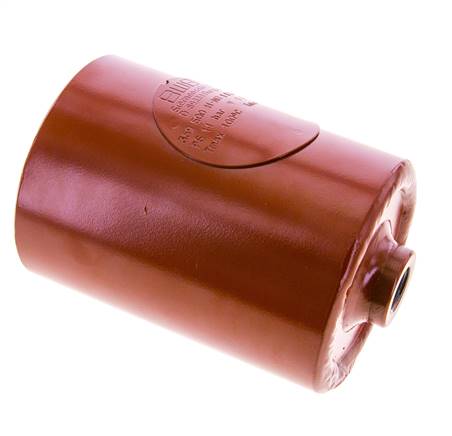

compressed air reservoir 1l, 0 to 11bar, red painted (RAL 3009, 2-K)
Item number:
BHL 1/11 G
Item description
Materials:
Steel, painted / primed
Note:
Calculation according to code AD 2000 (wall with increased corrosion allowance)
Optional:
painted blue (RAL 5015) -5015, painted reseda green (RAL 6011) -6011
Steel, painted / primed
Note:
Calculation according to code AD 2000 (wall with increased corrosion allowance)
Optional:
painted blue (RAL 5015) -5015, painted reseda green (RAL 6011) -6011
Properties
| Version | red painted (RAL 3009, 2-K) |
| Contents [LTR] | 1 |
| Operating pressure [bar] | 0 - 11 |
| Diameter [mm] | 105 |
| Length [mm] | 171 |
| Connections (female thread) | 2x G 1/2" |
| Description | Compressed air reservoir |
| Temperature range [°C] | -40 to +100 |
Further information on BHL1/11G
| Weight | 1,7 kg / pcs |
| GTIN | 4050571224165 |
| Tariff No. | 73110091 |
| RoHS compliant | Yes |
Documents
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Only for rail vehicles, beige-red (RAL 3012), **Only for motor vehicles, jet black (RAL 9005), ***We recommend the use of 2 pieces.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
