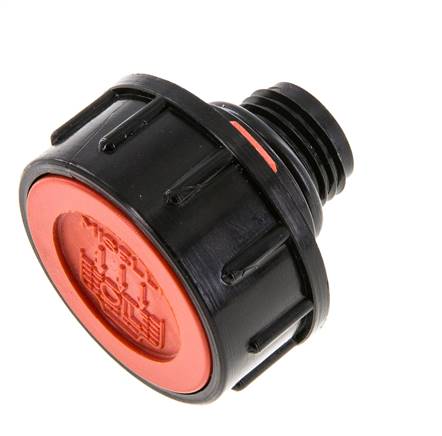

Filler plug M 16x1,5, with air filter, Plastic
{{ $t('shop.all.artikelnummer') }}:
BSF M16 K
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
The vent screws are delivered with or without the air filters. Breathers should be used with filters during usage in oil-hydraulic systems. In addition filter screws and vent screws can also be supplied with oil dipstick made of steel that can be shortened whenever desired.
Suitable:
as filler and breather for fluid containers such as hydraulic tanks, or gearbox filling and venting connections
Materials:
Type plastic: Body: polyamide, seal: NBR, air filter: PU foam, oil dipstick: zinc-plated steel, type brass: Body: brass, seal: Fasit 202 (mineral fibre with NBR), air filter: zinc-plated steel wire mesh
Temperature range:
-20 to +100 °C
Media:
Mineral oils (water only without oil dipstick)
Filter porosity:
air filter 50 to 60 µm
The vent screws are delivered with or without the air filters. Breathers should be used with filters during usage in oil-hydraulic systems. In addition filter screws and vent screws can also be supplied with oil dipstick made of steel that can be shortened whenever desired.
Suitable:
as filler and breather for fluid containers such as hydraulic tanks, or gearbox filling and venting connections
Materials:
Type plastic: Body: polyamide, seal: NBR, air filter: PU foam, oil dipstick: zinc-plated steel, type brass: Body: brass, seal: Fasit 202 (mineral fibre with NBR), air filter: zinc-plated steel wire mesh
Temperature range:
-20 to +100 °C
Media:
Mineral oils (water only without oil dipstick)
Filter porosity:
air filter 50 to 60 µm
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Plastic |
| Version | with air filter |
| Thread | M 16x1,5 |
| Locking screw diameter [mm] | 36 |
{{ $t('shop.display.artikel.info') }} BSFM16K
| {{ $t('shop.all.gewicht') }} | 13 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571228286 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84219910 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 822) atlas9_seiten/822.pdf
Documentation doku/bsk.pdf
Documentation doku/bsk.pdf
