Item group

Filling and vent screws

Version:

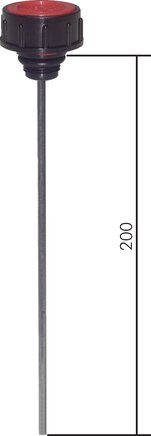

The vent screws are delivered with or without the air filters. Breathers should be used with filters during usage in oil-hydraulic systems. In addition filter screws and vent screws can also be supplied with oil dipstick made of steel that can be shortened whenever desired.

Suitable:

as filler and breather for fluid containers such as hydraulic tanks, or gearbox filling and venting connections

Materials:

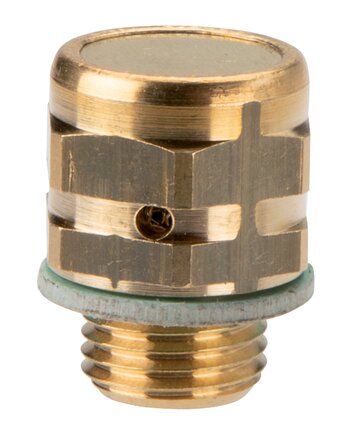

Type plastic: Body: polyamide, seal: NBR, air filter: PU foam, oil dipstick: zinc-plated steel, type brass: Body: brass, seal: Fasit 202 (mineral fibre with NBR), air filter: zinc-plated steel wire mesh

Temperature range:

-20 to +100 °C

Media:

Mineral oils (water only without oil dipstick)

Filter porosity:

air filter 50 to 60 µm

Documents:

More information Less information

Filter items

Material
Please select
Version
Please select
Thread
Please select
Locking screw diameter [mm]
Please select
Filling and vent screws:
20 of 44 articles
Filler plug G 1/4", with air filter, Plastic(BSF 14 K)
BSF 14 K
Filler plug G 1/4", with air filter, Plastic
€4.88 incl. VAT
Immediately available
Filler plug G 3/8", with air filter, Plastic(BSF 38 K)
BSF 38 K
Filler plug G 3/8", with air filter, Plastic
€5.81 incl. VAT
Immediately available
Filler plug M 16x1,5, with air filter, Plastic(BSF M16 K)
BSF M16 K
Filler plug M 16x1,5, with air filter, Plastic
€6.15 incl. VAT
Immediately available
Filler plug G 1/2", with air filter, Plastic(BSF 12 K)
BSF 12 K
Filler plug G 1/2", with air filter, Plastic
€6.63 incl. VAT
Immediately available
Filler plug M 18x1,5, with air filter, Plastic(BSF M18 K)
BSF M18 K
Filler plug M 18x1,5, with air filter, Plastic
€6.32 incl. VAT
Immediately available
Filler plug M 20x1,5, with air filter, Plastic(BSF M20 K)
BSF M20 K
Filler plug M 20x1,5, with air filter, Plastic
€6.58 incl. VAT
Immediately available
Filler plug M 22x1,5, with air filter, Plastic(BSF M22 K)
BSF M22 K
Filler plug M 22x1,5, with air filter, Plastic
€6.84 incl. VAT
Immediately available
Filler plug G 3/4", with air filter, Plastic(BSF 34 K)
BSF 34 K
Filler plug G 3/4", with air filter, Plastic
€7.59 incl. VAT
Immediately available
Filler plug G 1", with air filter, Plastic(BSF 10 K)
BSF 10 K
Filler plug G 1", with air filter, Plastic
€9.31 incl. VAT
Immediately available
Filler plug G 1-1/4", with air filter, Plastic(BSF 114 K)
BSF 114 K
Filler plug G 1-1/4", with air filter, Plastic
€11.26 incl. VAT
Immediately available
Filler plug G 1-1/2", with air filter, Plastic(BSF 112 K)
BSF 112 K
Filler plug G 1-1/2", with air filter, Plastic
€12.09 incl. VAT
Immediately available
Filler plug G 3/8", without an air filter, Plastic(BS 38 K)
BS 38 K
Filler plug G 3/8", without an air filter, Plastic
€5.05 incl. VAT
Immediately available
Filler plug M 16x1,5, without an air filter, Plastic(BS M16 K)
BS M16 K
Filler plug M 16x1,5, without an air filter, Plastic
€5.05 incl. VAT
Immediately available
Filler plug G 1/2", without an air filter, Plastic(BS 12 K)
BS 12 K
Filler plug G 1/2", without an air filter, Plastic
€5.64 incl. VAT
Immediately available
Filler plug M 18x1,5, without an air filter, Plastic(BS M18 K)
BS M18 K
Filler plug M 18x1,5, without an air filter, Plastic
€5.36 incl. VAT
Immediately available
Filler plug M 20x1,5, without an air filter, Plastic(BS M20 K)
BS M20 K
Filler plug M 20x1,5, without an air filter, Plastic
€5.64 incl. VAT
Immediately available
Filler plug M 22x1,5, without an air filter, Plastic(BS M22 K)
BS M22 K
Filler plug M 22x1,5, without an air filter, Plastic
€5.57 incl. VAT
Immediately available
Filler plug G 3/4", without an air filter, Plastic(BS 34 K)
BS 34 K
Filler plug G 3/4", without an air filter, Plastic
€6.55 incl. VAT
Immediately available
Filler plug G 1", without an air filter, Plastic(BS 10 K)
BS 10 K
Filler plug G 1", without an air filter, Plastic
€8.18 incl. VAT
Immediately available
Filler plug G 1-1/4", without an air filter, Plastic(BS 114 K)
BS 114 K
Filler plug G 1-1/4", without an air filter, Plastic
€10.53 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
