Item description
Scope of delivery:

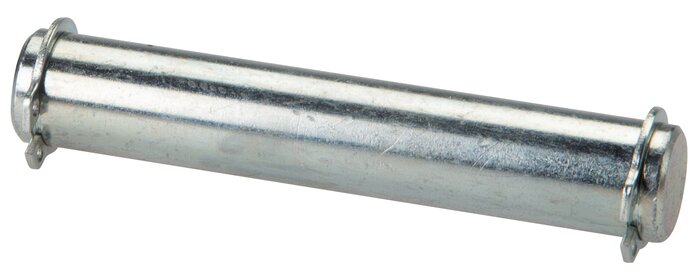

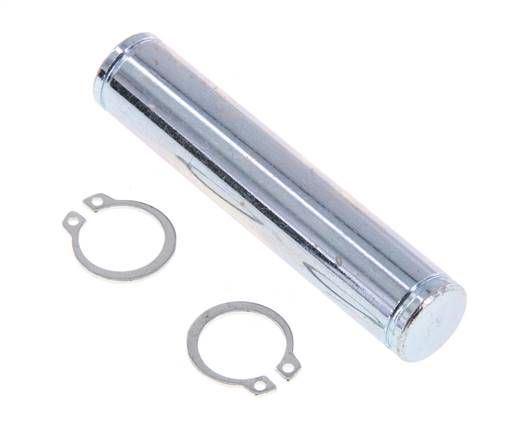

Bolts complete with compression ring and cotter pins
Bolts complete with compression ring and cotter pins
Properties
| Material | Zinc plated steel |
| for piston diameter [mm] | 63 |

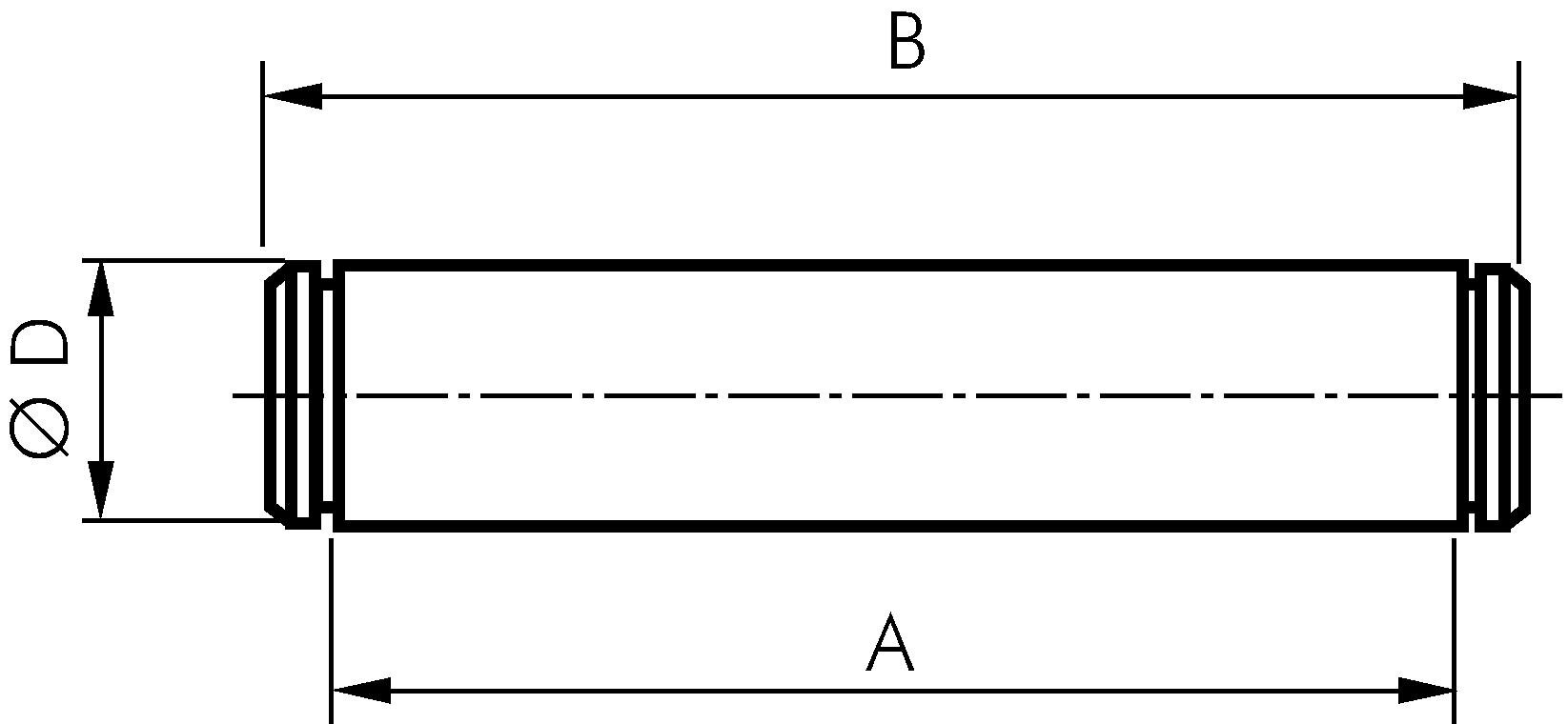

| A [mm] | 71,0 |
| B [mm] | 78 |
| D [mm] | 16 |
Further information on FF63
| Weight | 125 g / pcs |
| GTIN | 4050571295943 |
| Customs duty number | 73182900 |
Documents
- Catalogue page Atlas 9 (Page 841) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
