Item description
Application:

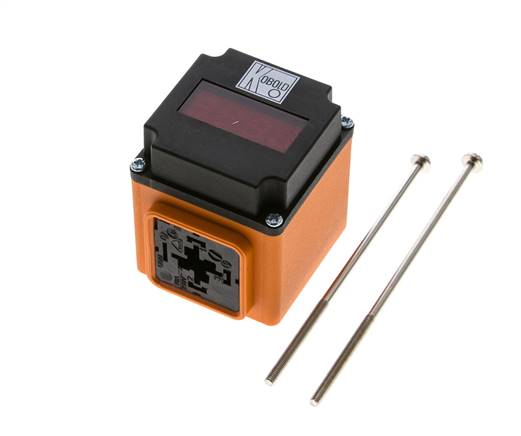

The plug-in display is inserted directly on the measurement transducer with 4 - 20 mA output and displays the measured value. The instrument is provided electrical energy from the circuit of the 4 - 20mA signal and does not need any additional auxiliary energy.
Materials:
Housing: Polyamide, front pane: PMMA
Display:
4-digit LED display, height of digits 7.6 mm
Temperature range:
0 to +60 °C
Protection class:
IP 65
Electrical connection:
A transmitter with 4-20 mA outlet in a 2-wire system and elbow plug DIN 43650 / EN 175301-803 (size 3, 4-pole)
Conversion rate:
Can be set for measurement every 0.3 seconds to a measurement every 20 seconds.
Programming:
Using 2 keys under the housing face plate, menu guided: scaling of the display area, decimal point, cushioning
Advantages:
•Display rotatable in 90° steps and therefore, easily adjustable to fit different installation situations
Optional:
programmable switching output (PNP, normally closed or normally open, max. 90 mA) -S
The plug-in display is inserted directly on the measurement transducer with 4 - 20 mA output and displays the measured value. The instrument is provided electrical energy from the circuit of the 4 - 20mA signal and does not need any additional auxiliary energy.
Materials:
Housing: Polyamide, front pane: PMMA
Display:
4-digit LED display, height of digits 7.6 mm
Temperature range:
0 to +60 °C
Protection class:
IP 65
Electrical connection:
A transmitter with 4-20 mA outlet in a 2-wire system and elbow plug DIN 43650 / EN 175301-803 (size 3, 4-pole)
Conversion rate:
Can be set for measurement every 0.3 seconds to a measurement every 20 seconds.
Programming:
Using 2 keys under the housing face plate, menu guided: scaling of the display area, decimal point, cushioning
Advantages:
•Display rotatable in 90° steps and therefore, easily adjustable to fit different installation situations
Optional:
programmable switching output (PNP, normally closed or normally open, max. 90 mA) -S
Properties
| Version | Standard |
Further information on AA1000
| Weight | 100 g / pcs |
| GTIN | 4050571215965 |
| Customs duty number | 85312020 |
Documents
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
