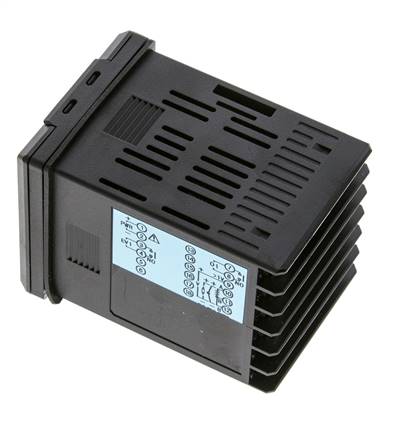

Item description
Application:
The compact universal controller is used for displaying, regulating and monitoring temperatures in plant and industrial furnace construction, process engineering, plastics technology, ventilation and air conditioning technology, as well as in general industrial applications.
Materials:
Housing: Polycarbonate with screw bracket for wall thicknesses up to 5 mm
Display:
5-digit 7-segment LED display, actual value: red, set value: green)
Temperature range:
0 to +50 °C
Protection class:
IP 66 (front side)
Electrical connection:
Screw terminals
Input signal:
Multifunction input freely selectable for resistance thermometer Pt100 (3-wire), thermocouples (type K, J, R, S, E, T, N, PL-II, C (W5), B) and standard signals (0-20 mA, 4-20 mA, 0-1 V, 0-5 V, 1-5 V, 0-10 V).
Output signal:
Control output as relay contact (NO contact) and alarm output for actual value monitoring: max. load 250 V AC (3 A ohmic load, 1 A inductive load cos phi = 0.4)
Control behaviour:
PID (with self-optimisation), PI, PD, P, ON/OFF (adjustable)
Dimensions:
Front frame: 48 x 48 mm, installation depth: approx. 59 mm, switch panel cutout: 45 x 45 mm
Note:
WIKA Type CS6S
The compact universal controller is used for displaying, regulating and monitoring temperatures in plant and industrial furnace construction, process engineering, plastics technology, ventilation and air conditioning technology, as well as in general industrial applications.
Materials:
Housing: Polycarbonate with screw bracket for wall thicknesses up to 5 mm
Display:
5-digit 7-segment LED display, actual value: red, set value: green)
Temperature range:
0 to +50 °C
Protection class:
IP 66 (front side)
Electrical connection:
Screw terminals
Input signal:
Multifunction input freely selectable for resistance thermometer Pt100 (3-wire), thermocouples (type K, J, R, S, E, T, N, PL-II, C (W5), B) and standard signals (0-20 mA, 4-20 mA, 0-1 V, 0-5 V, 1-5 V, 0-10 V).
Output signal:
Control output as relay contact (NO contact) and alarm output for actual value monitoring: max. load 250 V AC (3 A ohmic load, 1 A inductive load cos phi = 0.4)
Control behaviour:
PID (with self-optimisation), PI, PD, P, ON/OFF (adjustable)
Dimensions:
Front frame: 48 x 48 mm, installation depth: approx. 59 mm, switch panel cutout: 45 x 45 mm
Note:
WIKA Type CS6S
Properties
| voltage supply | 20 - 28 V (AC/DC) |
| Power consumption | max. 5 VA / 5 W |
Further information on DTR24
| Weight | 120 g / pcs |
| GTIN | 4050571889241 |
| Customs duty number | 90328900 |
| RoHS compliant | Yes |
| Manufacturer | WIKA (WEEE DE92770372) |
Documents
- Catalogue page Atlas 9 (Page 701a) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
