Data sheet
Sleeve 1.4571, G 3/4"-19 (3/4")mm, without nuts
Item number:
S 3419 ES

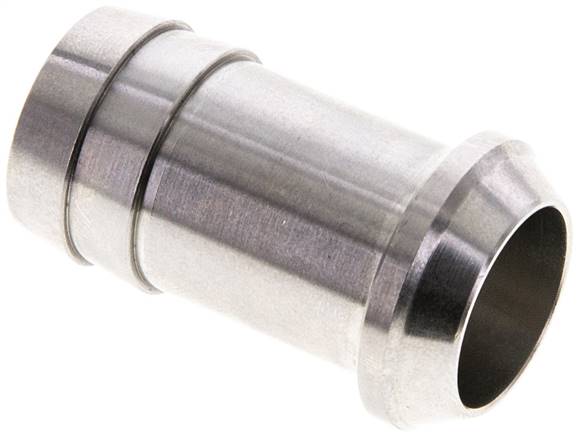

Example illustration
Item description
Warning:
Version of the sleeves and union nuts varies depending on the manufacturer and material. Mixing of the individual parts with other manufacturers or materials is not recommended.
Properties
| Material | Sleeve 1.4571 |
| Hose diameter (inner) [mm] | 19 (3/4") |
| Union nut | UM 34 ES |
| Thread (G) | G 3/4" |
| L [mm] | 16 |
| SW [mm] | 32 |
Further information:
| Weight | 30 g / pcs |
| GTIN | 4050571609153 |
| Customs duty number | 73072910 |
| RoHS compliant | Yes |
Drawing:
Drawing: Union nut for grommet
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number S 3419 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 16.04.2025
